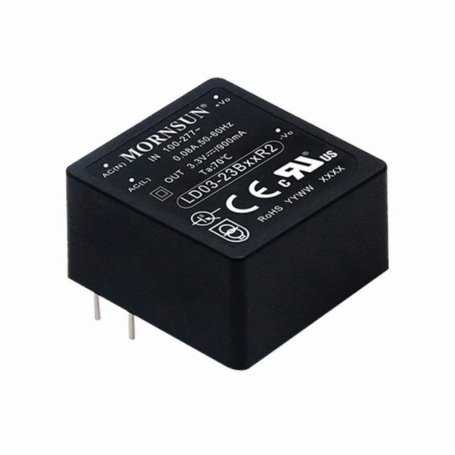

The product image may slightly differ as it is representative of the family and not the model.
LD03-23BxxR2 AC/DC Power Supply Mornsun 3W Voltages 3.3V 5V 9V 12V 15V 24V DIP
Description
The AC DC power supply Mornsun of the LD03-23BxxR2 series has a single 3W output, with an input voltage (85 - 305VAC or 100 - 430VDC), with output voltages 3.3V 5V 9V 12V 15V 24V
The LD03-23BxxR2 series has been specifically designed for industrial, electrical, domestic, instrumentation, communication and civil applications.
Features:
- High efficiency up to 79%
- Ultra-wide input voltage range from 85 to 305 VAC and 100-430 VDC
- Compact dimensions 1 × 1 inch
- Ambient temperature operating range: from -40 ℃ to + 85 ℃
- No-load power consumption 0.1 W.
- Application at an altitude of 5000 m
- The plastic housing meets UL94V-0 flammability
- EMI performance meets CISPR32 / EN55032 CLASS B, EN55014
- Safety approval IEC / EN / UL62368 / EN60335 / EN61558
- DIP Package
- Dimensions: Horizontal package 25.40x25.40x17.60 mm / A2S mounting 76x31.50x26.40mm / A4S mounting 76x31.50x31mm
Applications:
- Industrial
Our rating:
- Reliability
- Price
- Features
- ⚡⚡⚡⚡
- ⚡⚡⚡⚡⚡
- ⚡⚡⚡
Main technical specifications
| MODEL | LD03-23B03R2 | LD03-23B05R2 | LD03-23B09R2 | LD03-23B12R2 | LD03-23B15R2 | LD03-23B24R2 | ||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Output power (W) | 3W | |||||||||||||||||||||||||||||||||||||
| Rated output voltage and current (Vo/Io) | 3.3V/900mA | 5V/600mA | 9V/333mA | 12V/250mA | 15V/200mA | 24V/125mA | ||||||||||||||||||||||||||||||||
| Efficiency at 230VAC (%) Typ |
72% | 76% | 78% | 78% | 79% | 79% | ||||||||||||||||||||||||||||||||
| Capacitive load (µF) max. |
4000 | 3000 | 1200 | 1200 | 680 | 220 | ||||||||||||||||||||||||||||||||
| PFC | NO | |||||||||||||||||||||||||||||||||||||
| Certification | UL/CE/CB | |||||||||||||||||||||||||||||||||||||
| For purchases and samples | CONTACT US | |||||||||||||||||||||||||||||||||||||
Note: * Use the "A2S" suffix for the frame and the "A4S" suffix for DIN rail mounting
Find out more information about AC-DC power supplies with 85-305VAC input voltage
Data sheet
- Output Voltage VDC
- 3.3
5
9
12
15
24 - Input Voltage VAC
- 85~305VAC
85~305VAC - Rating
- 453
- Power W
- 3
- Efficiency
- 79%
- Dimensions
- A2S mounting 76x31.50x26.40mm
A4S mounting 76x31.50x31mm
Horizontal package 25.40x25.40x17.60mm - Output Current A
- 0.2
0.6
0.9
0.25
0.125
0.333 - Certifications
- Sure, but could you please provide the full text that you would like translated?
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
UL - Applications
- Industrial Automation
- Product Family
- It appears that "LD03-23BxxR2" is a model number or product code and does not require translation. If you need further assistance or context for this code, please provide additional details.
