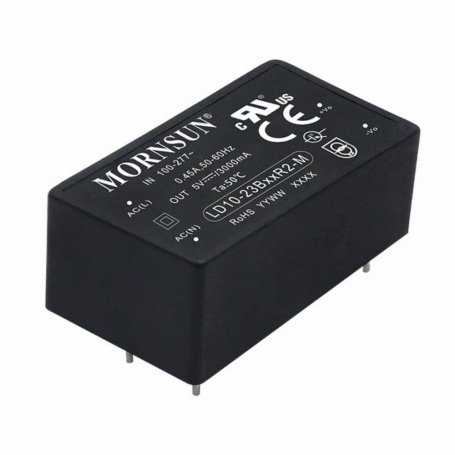

The product image may slightly differ as it is representative of the family and not the model.

LD10-23BxxR2-M AC/DC Power Supply Mornsun 10W Voltages 3.3V 5V 9V 12V 15V 24V DIP

€6.79 The text appears to be a model or part number and does not require translation.
€6.79 The text "LD10-23B05R2-M" doesn't appear to be in Italian or any other language. It looks like a model number or code. Therefore
€6.79 The text appears to be a product model number or code, and therefore does not translate between languages. It remains "LD10-23B0
€6.79 The text appears to be a model number or a specific code, therefore it doesn't require translation as it remains the same in all
€6.79 The text appears to be a product model number or code and does not need translation.
€6.79 The text "LD10-23B24R2-M" is not in Italian, it's a sequence of numbers and letters that could represent a model number or code

€4.27 Tax excluded

€4.27 Tax excluded

Quantity Unit price Total price Buy
1 €6.79 €6.79
5 €6.65 €33.27
10 €6.52 €65.18
20 €6.38 €127.65
Description

The AC DC power supply Mornsun of the LD10-23BxxR2 series  has a single 10W output, with an input voltage (85 - 305VAC/100 - 430VDC), with output voltages 3.3V 5V 9V 12V 15V 24V

The LD10-23BxxR2-M series has been specifically designed for industrial, electrical, medical, household appliance, instrumentation, communication, and civil applications.

Features:

  • High efficiency up to 86%
  • Ultra wide input voltage range from 85 to 305 VAC and 100-430 VDC
  • Ambient operating temperature range: from -40 ℃ to + 85 ℃
  • Up to 85% efficiency
  • No-load power consumption
  • Application at an altitude of 5000 m
  • EMI performance meets CISPR32 / EN55032 CLASS B, EN55014
  • Safety approval IEC / EN / UL62368 / EN60335 / EN61558
  • Design to meet IEC / EN60601-1 / ANSI / AAMI ES60601-1 (2xMOPP) standards
  • DIP package
  • Dimensions: 47.60x26.80x23.50mm

Applications:

  • Home automation
  • Security
  • Electricity

Our rating:

  • Reliability
  • Price
  • Features
    • ⚡⚡⚡⚡
    • ⚡⚡⚡⚡⚡
    • ⚡⚡⚡

Main technical specifications

MODELLD10-23B03R2-MLD10-23B05R2-MLD10-23B09R2-MLD10-23B12R2-MLD10-23B15R2-MLD10-23B24R2-M
Output power (W)  10W 10W 10W 10W 10W 10W
Peak power 13.2W 15W 15W 15W 15W 15W
Nominal output voltage and current (Vo/Io) 3.3V/3000mA 5V/2000mA 9V/1100mA 12V/830mA 15V/660mA 24V/410mA
Efficiency at 230VAC
(%) Typ 		 4000mA 3000mA 1670mA 1250mA 1000mA 625mA
Capacitive load
(µF) max.		 82 85 85 85 85 86
PFC NO
Certification  UL/CE/CB
For purchases and samples CONTACT US

Find out more about AC-DC power supplies with 85-305VAC input voltage

Find out more about

Attachments

Datasheet ACDC LD10-23BxxR2-M

Datasheet ACDC LD10-23BxxR2-M

file_download Download (374.84KB)

Data sheet
Mornsun
LD10-23B05R2-M
18 Items
7438645974678
Output Voltage VDC
3.3
5
9
12
15
24
Input Voltage VAC
85~305VAC
85~305VAC
Operating Temperature
-40°C / +85°C
Rating
453
Power W
10
PFC
No
Mechanical Mounting Format
Printed Circuit Board - PCB
Efficiency
86%
Dimensions
47.60x26.80x23.50mm
Output Current A
0.41
0.66
0.83
1.1
2
3
Certifications
Sure, but could you please provide the full text that you would like translated?
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
UL
Special Features
Medical Safety Approved (2xMOPP)
Applications
Electromedical
Industrial Automation
Input Voltage VAC (Nominal)
110
220
Product Family
LD10-23BxxR2-M
