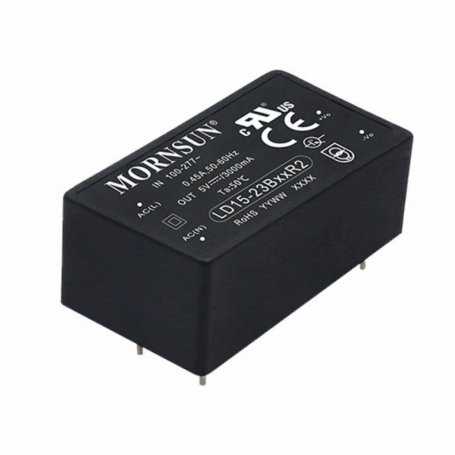

LD15-23BxxR2 AC/DC Power Supply Mornsun 15W Voltages 3.3V 5V 9V 12V 15V 24V DIP

€7.28 LD15-23B03R2
€7.28 LD15-23B05R2
€7.28 LD15-23B09R2
€7.28 As an AI, I should clarify that "LD15-23B12R2" doesn't seem to be Italian or English, it appears to be a model number or code of
€7.28 LD15-23B15R2
€7.28 The text "LD15-23B24R2" does not contain any Italian words or phrases to translate. It appears to be a code or serial number.

€4.55 Tax excluded

€4.55 Tax excluded

block Non disponibile - contattaci

We will send you an email once the product becomes available. your email address will not be shared with anyone else.

Quantity Unit price Total price Buy
1 €7.28 €7.28
5 €7.13 €35.67
10 €6.99 €69.89
20 €6.84 €136.86
Description

The AC DC power supply Mornsun from the LD15-23BxxR2 series has a single 15W output, with an input voltage (85 - 305VAC/100 - 430VDC), with output voltages 3.3V 5V 9V 12V 15V 24V

The LD15-23BxxR2 series has been specially designed for industrial applications, electrical, medical care, home appliances, instrumentation, communication, and civil.

Features:

  • High efficiency up to 86%
  • Ultra-wide input voltage range from 85 to 305 VAC and from 100 to 430 VDC
  • Ambient temperature operating range: from -40 ℃ to + 85 ℃
  • No-load power consumption
  • Application at an altitude of 5000 m
  • EMI performance meets CISPR32 / EN55032 CLASS B, EN55014
  • Safety approval IEC / EN / UL62368 / EN60335 / EN61558
  • Designed to meet IEC / EN60601-1 / ANSI / AAMI ES60601-1 (2xMOPP) standards
  • DIP package
  • Dimensions: DIP package 47.60x26.80x23.50mm / A2S chassis mounting 76x31.50x32.30 mm / A4S Din-Rail mounting 76x31.50x36.90mm

Applications:

  • Electromedical
  • Industrial Automation

Our rating:

  • Reliability
  • Price
  • Features
    • ⚡⚡⚡⚡
    • ⚡⚡⚡⚡⚡
    • ⚡⚡⚡

Main technical specifications

MODEL*LD15-23B03R2LD15-23B05R2LD15-23B09R2LD15-23B12R2LD15-23B15R2LD15-23B24R2
Output power (W)  13.2W 15W 15W 15W 15W 15W

Rated output voltage and current (Vo/Io)

3.3V/4000mA 5V/3000mA 9V/1670mA 12V/1250mA 15V/1000mA 24V/625mA
Efficiency at 230VAC
(%) Typ
82 85 84 85 85 86
Capacitive load
(µF) max.
6600 5000 3000 2000 1500 680
PFC NO
Certification  UL/CE/CB
For purchases and samples CONTACT US

Note: * Use the suffix "A2S" for the chassis and the suffix "A4S" for DIN rail mounting.

Discover more information on AC-DC power supplies with 85-305VAC input voltage

Discover more information on

Data sheet
Mornsun
LD15-23B05R2
7438645974760
Output Voltage VDC
3.3
5
9
12
15
24
Input Voltage VAC
85~305VAC
85~305VAC
Operating Temperature
-40°C / +85°C
Rating
453
Power W
15
PFC
No
Mechanical Mounting Format
Printed Circuit Board - PCB
Efficiency
86%
Dimensions
A2S chassis mounting 76x31.50x32.30 mm
A4S Din-Rail mounting 76x31.50x36.90mm
DIP package 47.60x26.80x23.50mm
Output Current A
0.625
1
1.25
1.67
3
4
Certifications
Sure, but could you please provide the full text that you would like translated?
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
UL
Applications
Electromedical
Industrial Automation
Input Voltage VAC (Nominal)
110
