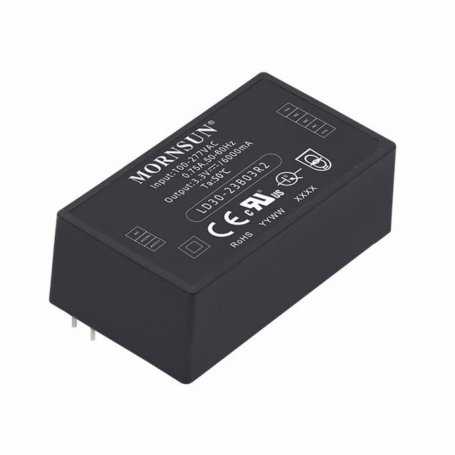

LD30-23BxxR2 AC/DC Power Supply Mornsun 30W Voltages 3.3V 5V 9V 12V 15V 24V 48V DIP
Description
The AC DC power supply Mornsun from the series LD30-23BxxR2 has a single output of 30W, with an input voltage (85 - 305VAC/100 - 430VDC), with output voltages 3.3V 5V 9V 12V 15V 24V 48V
The LD30-23BxxR2 series has been specifically designed for industrial, electrical, domestic, instrumentation, communication, and civil applications.
Features:
- High efficiency up to 90%
- Input voltage range: 85 - 305 VAC and 100 - 430 VDC
- Operating ambient temperature range: from -40 ℃ to + 85 ℃
- No-load power consumption ＜ 0.1 W
- Altitude application of 5000 m
- EMI performance meets CISPR32 / EN55032 CLASS B, EN55014
- Meets ± 2KV peaks without additional circuits
- Overvoltage class Ⅲ (designed to meet EN61558)
- Designed to meet IEC / EN / UL62368 / EN60335 / EN61558 standards
- DIP Package
- Dimensions: DIP package 69.50x39x24mm / A2S chassis mounting 96.10x54x32.50mm / A4S Din-Rail mounting 96.10x54x37.10mm
Applications:
- Industrial
- Electrical
Our Rating:
- Reliability
- Price
- Features
- ⚡⚡⚡⚡
- ⚡⚡⚡⚡⚡
- ⚡⚡⚡
Main technical specifications
| MODEL* | LD30-23B03R2 | LD30-23B05R2 | LD30-23B09R2 | LD30-23B12R2 | LD30-23B15R2 | LD30-23B24R2 | LD30-23B48R2 | ||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Output power (W) | 19.8 | 30 | 30.6 | 30 | 30 | 31.2 | 30.2 | ||||||||||||||||||||||||||||||||
|
Nominal output voltage and current (Vo/Io) |
3.3V/6000mA | 5V/6000mA | 9V/3400mA | 12V/2500mA | 15V/2000mA | 24V/1300mA | 48V/630mA | ||||||||||||||||||||||||||||||||
| Efficiency at 230VAC (%) Typ |
85% | 86% | 88% | 90% | 90% | 88% | 90% | ||||||||||||||||||||||||||||||||
|
Capacitive load |
6600 | 6600 | 4400 | 4400 | 3300 | 1000 | 470 | ||||||||||||||||||||||||||||||||
| PFC | NO | ||||||||||||||||||||||||||||||||||||||
| Certification | UL/CE/CB (Pending) | ||||||||||||||||||||||||||||||||||||||
| For purchases and samples | CONTACT US | ||||||||||||||||||||||||||||||||||||||
Note: * Use the "A2S" suffix for chassis and the "A4S" suffix for DIN rail mounting.
Find out more information on AC-DC power supplies with 85-305VAC input voltage
