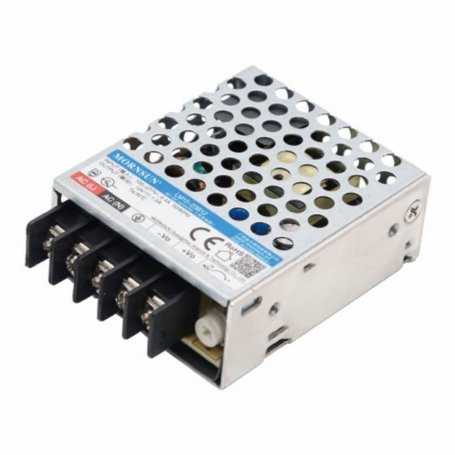

The product image may slightly differ as it is representative of the family and not the model.
LM15-23B - AC/DC Power Supply Mornsun Enclosed - 15W - Voltages 3.3V 5V 12V 15V 24V 48V
Description
The Boxed AC DC Mornsun power supply from the LM15-23B series is an entry-level product, it has a single 15W output, with an input voltage (85-305VAC or 100-430VDC), with output voltages 3.3V 5V 12V 15V 24V 48V
The LM15-23B series has been specifically designed for applications in industrial areas, LEDs, street lighting control, electricity, security, telecommunications, home automation.
Features:
- High efficiency up to 83%
- Input voltage 85 - 305VAC or 100 - 430VDC
- Operating ambient temperature range: from -30°C to +70°C
- No-load power consumption
- Insulation voltage 4000VAC
- Output short-circuit, overcurrent and overvoltage protection
- IEC / EN / UL62368, GB4943 safety approval
- Overvoltage class Ⅲ (designed to meet EN61558)
- Operational up to 5000m altitude
- Dimensions: 65x55x25mm
Applications:
- Security
- LED
- Home automation
- Telecommunications
Our rating:
- Reliability
- Price
- Features
- ⚡⚡⚡⚡
- ⚡⚡⚡⚡⚡
- ⚡⚡⚡
Main technical specifications
| MODEL* | LM15-23B03 | LM15-23B05 | LM15-23B12 | LM15-23B15 | LM15-23B24 | LM15-23B48 | ||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Output power (W) | 9.9 | 15 | 15.6 | 15 | 15 | 15.36 | ||||||||||||||||||||||||
| Nominal output voltage and current (Vo / Io) | 3.3V/3.0A | 5V/3.0A | 12V/1.3A | 15V/1.0A | 24V/0.625A | 48V/0.32A | ||||||||||||||||||||||||
| Adjustable output voltage range (V) | 2.85-3.6 | 4.5-5.5 | 10.2-13.8 | 13.5-18 | 21.6-28.8 | 42-54 | ||||||||||||||||||||||||
| Efficiency at 230VAC (%) Typ |
73 | 78 | 82 | 82 | 83 | 83 | ||||||||||||||||||||||||
| Capacitive load (µF) max. |
3000 | 2400 | 1800 | 1200 | 600 | 300 | ||||||||||||||||||||||||
| Dimensions | 65x55x25mm | 65x55x25mm | 65x55x25mm | 65x55x25mm | 65x55x25mm | 65x55x25mm | ||||||||||||||||||||||||
| PFC | No | No | No | No | No | No | ||||||||||||||||||||||||
| Certification | UL, CE, CB, CCC | UL, CE, CB, CCC | UL, CE, CB, CCC | UL, CE, CB, CCC | UL, CE, CB, CCC | UL, CE, CB, CCC | ||||||||||||||||||||||||
| For purchases and samples | CONTACT US | |||||||||||||||||||||||||||||
Note: * Use the suffix "C" for the terminal with protective cover and the suffix "Q" for conformal coating treatment.
Find out more information on AC-DC power supplies with input voltage 85-305VAC
Find out more information about
Data sheet
- Output Regulation Type
- Constant Voltage / CV
- Output Voltage VDC
- 3.3
5
12
15
24
48 - Input Voltage VAC
- 85~305VAC
85~305VAC - Operating Temperature
- -30°C / +70°C
- Rating
- 453
- Power W
- 9.9
15
15.6
15.36 - PFC
- No
- Mechanical Mounting Format
- Boxed - Frame Assembly
- Efficiency
- 83%
- Dimensions
- 65x55x25mm
- Output Current A
- 0.32
0.625
1
1.3
3 - Certifications
- It appears that "CCC" does not provide enough context for an accurate translation. Could you please provide more information or a complete sentence?
Sure, but could you please provide the full text that you would like translated?
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
UL - Applications
- Industrial Automation
Security - Input Voltage VAC (Nominal)
- 110
220 - Product Family
- It appears that "LM15-23Bxx" is a code or model number and does not require translation. If you have additional text that you would like translated, please provide it, and I'll be happy to help.
