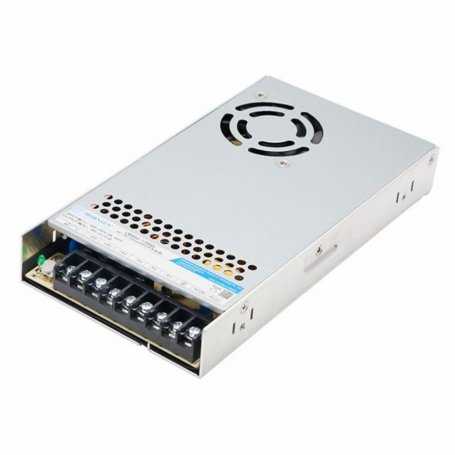

The product image may slightly differ as it is representative of the family and not the model.
LM450-12Bxx-(C) AC/DC Power Supply Mornsun Enclosed 450W Voltages 12V 15V 24V 27V 36V 48V
Description
The AC DC Boxed power supply Mornsun of the LM450-12B series is an entry level product, it has a single 450W output, with an input voltage (176 - 264VAC or 240 - 373VDC), with output voltages 12V 15V 24V 27V 36V 48V
The LM450-12B series has been specifically designed for applications such as: industrial areas, LEDs, street lighting control, electricity, security, telecommunications, home automation.
Features:
- High efficiency up to 88%
- Input voltage range 176 - 264VAC or 240 - 373VDC
- Accepts AC or DC input (double use of the same terminal)
- LED indicator for switching on
- Ambient temperature operating range: from -30 ° C to + 70 ° C
- Operates up to 5000 meters in altitude
- Protection from output short circuit, overcurrent, overvoltage, overtemperature
- Safety according to UL / EN / IEC62368, GB4943
- Built-in DC fan
- Dimensions: 215x115x30mm
Applications:
- Industrial areas
- Telecommunications
- Street lighting control
- Home automation
- Security
- LEDs
Our rating:
- Reliability
- Price
- Features
- ⚡⚡⚡⚡
- ⚡⚡⚡⚡⚡
- ⚡⚡⚡
Main technical specifications
| MODEL* | LM450-12B12 | LM450-12B15 | LM450-12B24 | LM450-12B27 | LM450-12B36 | LM450-12B48 | ||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Output power (W) | 450 | 450 | 451.2 | 450.9 | 450 | 451.2 | ||||||||||||||||||||||||||
|
Nominal output voltage and current (Vo / Io) |
12V/37.5A | 15V/30A | 24V/18.8A | 27V/16.7A | 36V/12.5A | 48V/9.4A | ||||||||||||||||||||||||||
|
Adjustable output voltage range (V) |
10.2-13.8 | 13.5-18 | 21.6-28.8 | 24.3-29.7 | 32.4-39.6 | 43.2-52.8 | ||||||||||||||||||||||||||
| Efficiency at 230VAC (%) Typ |
85 | 86 | 87 | 87 | 87.5 | 88 | ||||||||||||||||||||||||||
|
Capacitive load |
4000 | 3300 | 1500 | 1500 | 1000 | 470 | ||||||||||||||||||||||||||
|
Dimensions |
215x115x30mm | |||||||||||||||||||||||||||||||
| PFC | No | |||||||||||||||||||||||||||||||
| Certification | CE | |||||||||||||||||||||||||||||||
| For purchases and samples | CONTACT US | |||||||||||||||||||||||||||||||
Note: * Use the suffix "C" for the terminal with protective cover and the suffix "Q" for conformal coating treatment.
Data sheet
- Output Regulation Type
- Constant Voltage / CV
- Output Voltage VDC
- 12
15
24
27
36
48 - Input Voltage VAC
- 176 - 264VAC
176 - 264VAC - Operating Temperature
- -30°C / +70°C
- Rating
- 453
- Power W
- 450
- PFC
- No
- Mechanical Mounting Format
- Boxed - Frame Assembly
- Efficiency
- 88%
- Dimensions
- 215x115x30mm
- Output Current A
- 9.4
12.5
16.7
18.8
30
37.5 - Certifications
- This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
- Applications
- Industrial Automation
LED Power Supply
Security - Input Voltage VAC (Nominal)
- 220
- Product Family
- LM450-12Bxx
