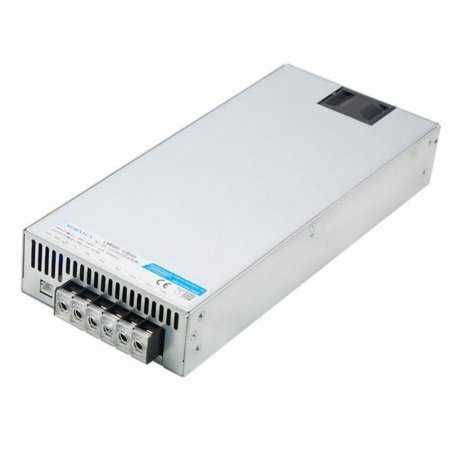

The product image may slightly differ as it is representative of the family and not the model.
LM600-12Bxx AC/DC Power Supply Mornsun Enclosed 600W Voltages 12V 15V 24V 27V 36V 48V
Description
The AC DC Boxed Power Supply Mornsun of the series LM600-12Bxx is an entry level product, it has a single 600W output, with an input voltage (176 - 264VAC or 240 - 373VDC), with output voltages 12V 15V 24V 27V 36V 48V
The LM600-12B series has been specifically designed for applications such as: industrial areas, LEDs, street lighting control, electricity, security, telecommunications, home automation.
Features:
- High efficiency up to 88%
- Input voltage range 176 - 264VAC or 240 - 373VDC
- Accepts AC or DC input (double use of the same terminal)
- Ambient temperature operating range: from -30 ° C to + 60 ° C
- LED indicator for power on
- Operational up to 5000 m altitude
- Protection from overtemperature, output short circuit, overcurrent, overvoltage protection
- Safety according to IEC / EN / UL62368, GB4943
- Resistant to input surges of 300 VAC for 5 seconds
- Built-in DC fan
- Remote detection function
- Dimensions: 267.3x106x40mm
Applications:
- Electricity
- Security
Our rating:
- Reliability
- Price
- Features
- ⚡⚡⚡⚡
- ⚡⚡⚡⚡⚡
- ⚡⚡⚡
Main Technical Specifications
| MODEL* | LM600-12B12 | LM600-12B15 | LM600-12B24 | LM600-12B27 | LM600-12B36 | LM600-12B48 | ||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Output Power (W) | 600 | 600 | 600 | 599.4 | 597.6 | 600 | ||||||||||||||||||||||||
|
Nominal Output Voltage and Current (Vo / Io) |
12V/50A | 15V/40A | 24V/25A | 27V/22.2A | 36V/16.6A | 48V/12.5A | ||||||||||||||||||||||||
|
Adjustable Range of Output Voltage (V) |
10 -13.5 | 13.5 -16.5 | 22 - 26.4 | 24 - 30 | 32 - 40 | 43 - 56 | ||||||||||||||||||||||||
| Efficiency at 230VAC (%) Typ |
85 | 86 | 87 | 87 | 87 | 88 | ||||||||||||||||||||||||
|
Capacitive Load |
3000 | 3000 | 1000 | 1000 | 1000 | 1000 | ||||||||||||||||||||||||
|
Dimensions |
267.3x106x40mm | 267.3x106x40mm | 267.3x106x40mm | 267.3x106x40mm | 267.3x106x40mm | 267.3x106x40mm | ||||||||||||||||||||||||
|
PFC |
No | No | No | No | No | No | ||||||||||||||||||||||||
| Certification | CE | CE | CE | CE | CE | CE | ||||||||||||||||||||||||
| For purchases and samples | CONTACT US | |||||||||||||||||||||||||||||
Note: * Use the suffix "Q" for conformal coating treatment
Data sheet
- Output Regulation Type
- Constant Voltage / CV
- Output Voltage VDC
- 12
15
24
27
36
48 - Input Voltage VAC
- 176 - 264VAC
176 - 264VAC - Operating Temperature
- -30°C / +60°C
- Rating
- 453
- Power W
- 600
- PFC
- No
- Mechanical Mounting Format
- Boxed - Frame Assembly
- Efficiency
- 88%
- Dimensions
- 267.3x106x40mm
- Output Current A
- 12.5
16.6
22.2
25
40
50 - Certifications
- This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
- Applications
- Industrial Automation
LED Power Supply
Security - Input Voltage VAC (Nominal)
- 220
- Product Family
- "LM600-12Bxx"
