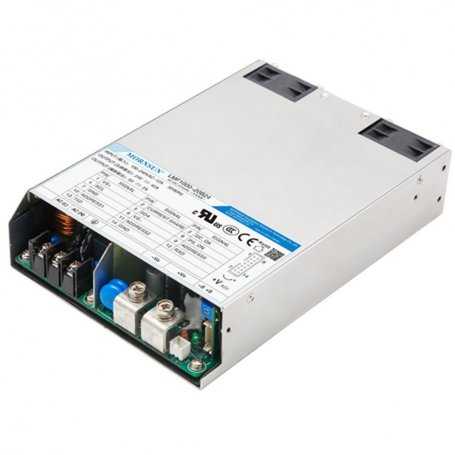

The product image may slightly differ as it is representative of the family and not the model.
LMF1000-20B - AC/DC Power Supply Mornsun Enclosed - 1000W - Voltages 12V 24V 48V
The boxed AC DC power supply Mornsun from the LMF1000-20B series is a professional product, it has a single 1000W output, with an input voltage (90 - 264VAC or 120 - 390VDC), with output voltages 12V 24V 48V
The LMF1000-20B series was specially designed for applications such as: industrial areas, LEDs, street lighting control, electricity, security, telecommunications, home automation.
Features:
- High efficiency up to 94%, high reliability
- Universal input voltage 90 - 264VAC or 120 - 390VDC
- Accepts AC or DC input (double use of the same terminal)
- Operating ambient temperature range: from -40 ° C to + 70 ° C
- Active PFC function
- Output short circuit protection, overcurrent, overvoltage, overtemperature
- Supports 3 + 1 parallel redundancy, current sharing
- Built-in active PFC function
- Operational up to 5000 m altitude
- Safety according to IEC / UL / EN62368, IEC / ES / EN60601, GB4943
- Fan speed automatically adjustable
- Dimensions: 190x127x40.5mm
Applications:
- Industrial areas
- Street lighting control
- Telecommunications
- Home automation
- LEDs
Our rating:
- Reliability
- Price
- Features
- ⚡⚡⚡⚡
- ⚡⚡⚡⚡⚡
- ⚡⚡⚡
Main technical specifications
| MODEL* | LMF1000-20B12 | LMF1000-20B24 | LMF1000-20B48 | ||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Output power (W) Main | 960 | 1008 | 1008 | ||||||||||||||||||||||||
| Output power (W) Auxiliary | 10 | 10 | 10 | ||||||||||||||||||||||||
|
Nominal output voltage and current (Vo / Io) Main |
12V/80A | 24V/42A | 48V/21A | ||||||||||||||||||||||||
|
Nominal output voltage and current (Vo / Io) Auxiliary |
5V/2A | 5V/2A | 5V/2A | ||||||||||||||||||||||||
|
Main output voltage adjustable range ADJ (V) Main |
12-14.4 | 24-28.8 | 48-56 | ||||||||||||||||||||||||
|
Main output voltage adjustable range ADJ (V) Auxiliary |
/ | / | / | ||||||||||||||||||||||||
| Efficiency at 230VAC (%) Typ |
92% | 94% | 94% | ||||||||||||||||||||||||
|
Capacitive load |
40000 | 10000 | 4000 | ||||||||||||||||||||||||
|
Capacitive load |
1000 | 1000 | 1000 | ||||||||||||||||||||||||
|
Dimensions |
190x127x40.5mm | ||||||||||||||||||||||||||
| PFC | Yes | ||||||||||||||||||||||||||
| Certification | - | ||||||||||||||||||||||||||
| For purchases and samples | CONTACT US | ||||||||||||||||||||||||||
Note: *Note: 1. * For all applications, refer to the Application Notes on the LMF1000-20B (-Q) power supply series. 2. Use the suffix "Q" for the conformal coating treatment.
- Output Regulation Type
- Constant Voltage / CV
- Output Voltage VDC
- 12
24
48 - Input Voltage VAC
- 90~264VAC
90~264VAC - Operating Temperature
- -40°C / +70°C
- Rating
- 453
- Power W
- 1000
- PFC
- Yes
- Mechanical Mounting Format
- Boxed - Frame Assembly
- Efficiency
- 94%
- Dimensions
- 190x127x40.5mm
- Output Current A
- 2
21
42
80 - Certifications
- This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
- Applications
- Industrial Automation
LED Power Supply
Security - Input Voltage VAC (Nominal)
- 110
220 - Product Family
