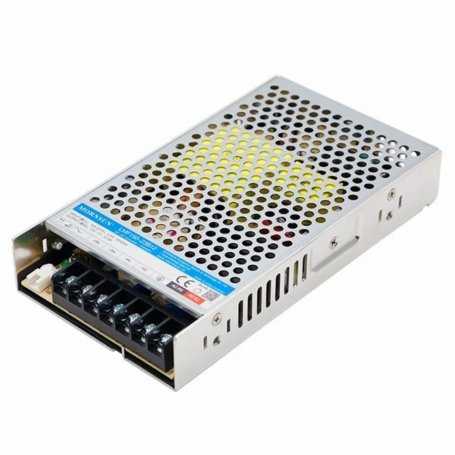

The product image may slightly differ as it is representative of the family and not the model.
LMF150-23Bxx - AC/DC Power Supply Mornsun Closed - 150W - Voltages 12V 15V 24V 48V
Description
The AC DC Boxed Power Supply Mornsun of the LMF150-23B series is a professional product, it has a single 150W output, with an input voltage (85 - 305V AC or 120 - 430VDC), with output voltages 12V 15V 24V 48V
The LMF150-23B series has been specially designed for applications such as: industrial areas, LEDs, street lighting control, electricity, security, telecommunications, home automation.
Features:
- High efficiency up to 88%, high reliability
- Universal input voltage 85 - 305V AC or 120 - 430VDC
- Accepts AC or DC input (double use of the same terminal)
- Ambient operating temperature range: from -30 ° C to + 70 ° C
- Active PFC function
- High I / O insulation test voltage up to 4000 VAC
- Output short circuit protection, overcurrent, overvoltage, overtemperature (Integrated constant current limiting circuit)
- Remote ON-OFF control
- Safety according to UL / EN / IEC62368, EN60335, GB4943
- Overvoltage class Ⅲ (designed to meet EN61558)
- Operates up to 5000 meters altitude
- Dimensions: 179×99×30mm
Applications:
- Home automation
- Security
- Electricity
Our rating:
- Reliability
- Price
- Features
- ⚡⚡⚡⚡
- ⚡⚡⚡⚡⚡
- ⚡⚡⚡
Main technical specifications
| MODEL* | LMF150-23B12 | LMF150-23B15 | LMF150-23B24 | LMF150-23B48 | ||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Output power (W) | 150 | 150 | 151.2 | 153.6 | ||||||||||||||||||||||||
|
Nominal output voltage and current (Vo / Io) |
12V/12.5A | 15V/10A | 24V/6.3A | 48V/3.2A | ||||||||||||||||||||||||
|
Adjustable output voltage range (V) |
10.2-13.8 | 13.5-18 | 21.6-28.8 | 45.6-55.2 | ||||||||||||||||||||||||
| Efficiency at 230VAC (%) Typ |
85.5 | 86 | 87 | 88 | ||||||||||||||||||||||||
|
Capacitive load |
5000 | 5000 | 5000 | 3000 | ||||||||||||||||||||||||
|
Dimensions |
179×99×30mm | 179×99×30mm | 179×99×30mm | 179×99×30mm | ||||||||||||||||||||||||
|
PFC |
Yes | Yes | Yes | Yes | ||||||||||||||||||||||||
| Certification | UL/CE/CB/ CCC | UL/CE/CB/ CCC | UL/CE/CB/ CCC | UL/CE/CB/ CCC | ||||||||||||||||||||||||
| For purchases and samples | CONTACT US | |||||||||||||||||||||||||||
Note: * Use the "C" suffix for the terminal with protective cover and the "Q" suffix for the conformal coating treatment.
Find out more information about AC-DC power supplies with 85-305VAC input voltage
Data sheet
- Output Regulation Type
- Constant Voltage / CV
- Output Voltage VDC
- 12
15
24
48 - Input Voltage VAC
- 85~305VAC
85~305VAC - Operating Temperature
- -30°C / +70°C
- Rating
- 453
- Power W
- 150
- PFC
- Yes
- Mechanical Mounting Format
- Boxed - Frame Assembly
- Efficiency
- 88%
- Dimensions
- 179×99×30mm
- Output Current A
- 3.2
6.3
10
12.5 - Certifications
- It appears that "CCC" does not provide enough context for an accurate translation. Could you please provide more information or a complete sentence?
Sure, but could you please provide the full text that you would like translated?
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
UL - Applications
- Industrial Automation
LED Power Supply
Security - Input Voltage VAC (Nominal)
- 110
220 - Product Family
- Could you please provide more context or the full text you would like to have translated? "LMF" alone does not provide enough information for an accurate translation.
