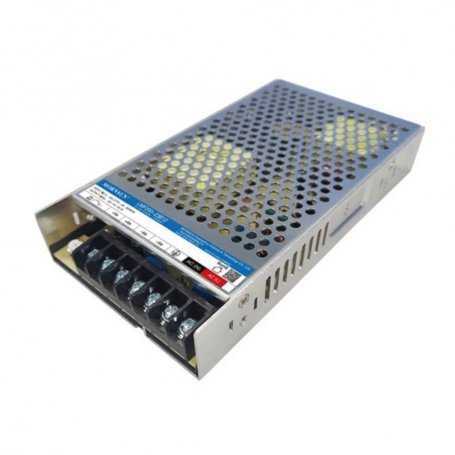

The product image may slightly differ as it is representative of the family and not the model.
LMF200-23Bxx - AC/DC Power Supply Mornsun Enclosed - 200W - Voltages 12V 15V 24V 48V
Description
The Boxed AC DC Mornsun of the LMF200-23B series is a professional product, it has a single 200W output, with a input voltage (85 - 305V AC or 120 - 430VDC), with output voltages 12V 15V 24V 48V
The LMF200-23B series has been specifically designed for applications such as: industrial areas, LEDs, street lighting control, electricity, security, telecommunications, home automation.
Features:
- High efficiency up to 90%, high reliability
- Universal input voltage 85 - 305V AC or 120 - 430VDC
- Accepts AC or DC input (double use of the same terminal)
- Ambient temperature operating range: from -30 ° C to + 70 ° C
- Active PFC function
- High I / O insulation test voltage up to 4000 VAC
- Protection from output short circuit, overcurrent, overvoltage, overtemperature (Integrated constant current limiting circuit）
- Safety according to IEC / EN / UL62368, EN60335, GB4943
- LED indicator for power on
- Emissions comply with CISPR32 / EN55032 CLASS B
- Start delay time less than 5 seconds at -30 ℃
- Operates up to 5000 meters in altitude
- Dimensions: 179×99×30mm
Applications:
- Home Automation
- Security
- Electricity
Our rating:
- Reliability
- Price
- Features
- ⚡⚡⚡⚡
- ⚡⚡⚡⚡⚡
- ⚡⚡⚡
Main Technical Specifications
| MODEL* | LMF200-23B12 | LMF200-23B15 | LMF200-23B24 | LMF200-23B48 | ||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Output Power (W) | 200.4 | 201.0 | 201.6 | 201.6 | ||||||||||||||||||||||||
|
Nominal output voltage and current (Vo / Io) |
12V/16.7A | 15V/13.4A | 24V/8.4A | 48V/4.2A | ||||||||||||||||||||||||
|
Adjustable output voltage range (V) |
11.4 - 12.6 | 14.25 - 15.75 | 22.8 - 25.2 | 45.6 - 50.4 | ||||||||||||||||||||||||
| Efficiency at 230VAC (%) Typ |
88.0 | 88.0 | 90.0 | 89.0 | ||||||||||||||||||||||||
|
Capacitive load |
4000 | 3300 | 1500 | 470 | ||||||||||||||||||||||||
|
Dimensions |
179×99×30mm | 179×99×30mm | 179×99×30mm | 179×99×30mm | ||||||||||||||||||||||||
|
PFC |
Yes | Yes | Yes | Yes | ||||||||||||||||||||||||
| Certification | UL/CE/CCC | UL/CE/CCC | UL/CE/CCC | UL/CE/CCC | ||||||||||||||||||||||||
| For purchases and samples | CONTACT US | |||||||||||||||||||||||||||
Note: * Use the suffix "C" for the terminal with protective cover and the suffix "Q" for the conformal coating treatment.
Discover more information about AC-DC power supplies with 85-305VAC input voltage
Data sheet
- Output Regulation Type
- Constant Voltage / CV
- Output Voltage VDC
- 12
15
24
48 - Input Voltage VAC
- 85~305VAC
85~305VAC - Operating Temperature
- -30°C / +70°C
- Rating
- 453
- Power W
- 200
- PFC
- Yes
- Mechanical Mounting Format
- Boxed - Frame Assembly
- Efficiency
- 90%
- Dimensions
- 179×99×30mm
- Output Current A
- 4.2
8.4
13.4
16.7 - Certifications
- It appears that "CCC" does not provide enough context for an accurate translation. Could you please provide more information or a complete sentence?
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
UL - Applications
- Industrial Automation
LED Power Supply
Security - Input Voltage VAC (Nominal)
- 110
220 - Product Family
- Could you please provide more context or the full text you would like to have translated? "LMF" alone does not provide enough information for an accurate translation.
