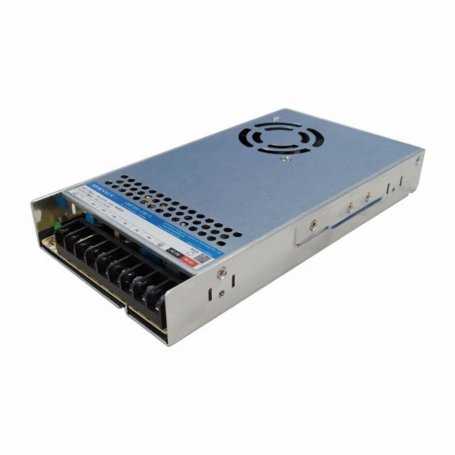

The product image may slightly differ as it is representative of the family and not the model.
LMF320-23Bxx - AC/DC Power Supply Mornsun Enclosed - 320W - Voltages 5V 12V 15V 24V 48V
Description
The AC DC Boxed Power Supply Mornsun from the LMF320-23B series is a professional product, it has a single 320W output, with an input voltage (85 - 305V AC or 120 - 430VDC), with output voltages 5V 12V 15V 24V 48V
The LMF320-23B series has been specifically designed for applications such as: industrial areas, LEDs, street lighting control, electricity, security, telecommunications, home automation.
Features:
- High efficiency up to 89%, high reliability
- Universal input voltage 85 - 305V AC or 120 - 430VDC
- Accepts AC or DC input (double use of the same terminal)
- Ambient operating temperature range: from -30 ° C to + 70 ° C
- Active PFC function
- High I / O insulation test voltage up to 4000 VAC
- Output short-circuit protection, overcurrent, overvoltage, overtemperature
- Safety according to IEC / EN / UL62368, GB4943
- Compact dimensions with a low profile 1U
- LED indicator for power on
- Built-in DC fan
- Emissions are in compliance with CISPR32 / EN55032 CLASS B
- Dimensions: 215x115x30mm
Applications:
- Home automation
- Security
- Electricity
Our rating:
- Reliability
- Price
- Features
- ⚡⚡⚡⚡
- ⚡⚡⚡⚡⚡
- ⚡⚡⚡
Main Technical Specifications
| MODEL* | LMF320-23B05 | LMF320-23B12 | LMF320-23B15 | LMF320-23B24 | LMF320-23B48 | ||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Output Power (W) | 300 | 320.4 | 321 | 321.6 | 321.6 | ||||||||||||||||||||||||
|
Nominal output voltage and current (Vo / Io) |
5V/60A | 12V/26.7A | 15V/21.4A | 24V/13.4A | 48V/6.7A | ||||||||||||||||||||||||
|
Adjustable range of output voltage (V) |
4.5 - 5.5 | 10 - 13.2 | 13.5 - 18 | 20 - 26.4 | 41 - 56 | ||||||||||||||||||||||||
| Efficiency at 230VAC (%) Typ |
84 | 86.5 | 89 | 88.5 | 89 | ||||||||||||||||||||||||
|
Capacitive load |
5000 | 5000 | 5000 | 5000 | 5000 | ||||||||||||||||||||||||
|
Dimensions |
215x115x30mm | 215x115x30mm | 215x115x30mm | 215x115x30mm | 215x115x30mm | ||||||||||||||||||||||||
|
PFC |
Yes | Yes | Yes | Yes | Yes | ||||||||||||||||||||||||
| Certification | UL/CE/CCC | UL/CE/CCC | UL/CE/CCC | UL/CE/CCC | UL/CE/CCC | ||||||||||||||||||||||||
| For purchases and samples | CONTACT US | ||||||||||||||||||||||||||||
Note: * Use the suffix "C" for the terminal with protective cover and the suffix "Q" for the conformal coating treatment.
Discover more information about AC-DC power supplies with 85-305VAC input voltage
Data sheet
- Output Regulation Type
- Constant Voltage / CV
- Output Voltage VDC
- 5
12
15
24
48 - Input Voltage VAC
- 85~305VAC
85~305VAC - Operating Temperature
- -30°C / +70°C
- Rating
- 453
- Power W
- 320
- PFC
- Yes
- Mechanical Mounting Format
- Boxed - Frame Assembly
- Efficiency
- 89%
- Dimensions
- 215x115x30mm
- Output Current A
- 6.7
13.4
21.4
26.7
60 - Certifications
- It appears that "CCC" does not provide enough context for an accurate translation. Could you please provide more information or a complete sentence?
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
UL - Applications
- Industrial Automation
LED Power Supply
Security - Input Voltage VAC (Nominal)
- 110
220 - Product Family
- Could you please provide more context or the full text you would like to have translated? "LMF" alone does not provide enough information for an accurate translation.
