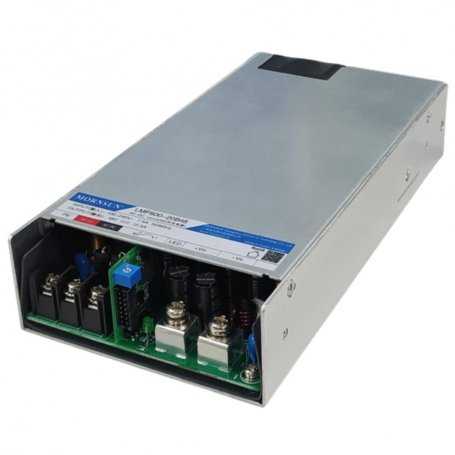

The product image may slightly differ as it is representative of the family and not the model.
LMF600-20B - AC/DC Power Supply Mornsun Enclosed - 600W - Voltages 12V 15V 24V 27V 36V 48V
Description
The boxed AC DC Mornsun from the LMF600-20B series is a professional product, it has a single 600W output, with an input voltage (80 - 277VAC or 110 - 390VDC), with output voltages 12V 15V 24V 27V 36V 48V
The LMF600-20B series has been specially designed for applications such as: industrial areas, LEDs, street lighting control, electricity, security, telecommunications, home automation.
Features:
- High efficiency up to 94%, high reliability
- Universal input voltage 80 - 277VAC or 110 - 390VDC
- Accepts AC or DC input (double use of the same terminal)
- Ambient operating temperature range: from -40 ° C to + 70 ° C
- Protection from short circuit, overcurrent, overvoltage, overtemperature
- Operational up to 5000 m altitude
- High I/O insulation test voltage up to 4000VAC
- Low ripple and noise
- Remote ON/OFF function
- DC OK function
- With 5V/1A standby power
- Dimensions: 101.6 x 203.1 x 40.6mm
Applications:
- Industrial areas
- Street lighting control
- Telecommunications
- Home automation
- LEDs
Our rating:
- Reliability
- Price
- Features
- ⚡⚡⚡⚡
- ⚡⚡⚡⚡⚡
- ⚡⚡⚡
Main technical specifications
| MODEL* | LMF600-20B12 | LMF600-20B15 | LMF600-20B24 | LMF600-20B27 | LMF600-20B36 | LMF600-20B48 | ||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Output power (W) | 600W | |||||||||||||||||||||||||||||
|
Nominal output voltage and current (Vo / Io)* |
12V/50A | 15V/40A | 24V/25A | 27V/22.3A | 36V/16.7A | 48V/12.5A | ||||||||||||||||||||||||
|
Output voltage adjustment range (V) |
11.8-12.6 | 14.7-15.8 | 23.5-25.2 | 26.4-28.4 | 35.3-37.8 | 47.0-50.4 | ||||||||||||||||||||||||
| Efficiency | 92% | 94% | ||||||||||||||||||||||||||||
|
Capacitive load |
6000 | 6000 | 4000 |
4000 |
2400 | 1600 | ||||||||||||||||||||||||
|
Standby (Vo/Io)* |
5V/1A | |||||||||||||||||||||||||||||
|
Dimensions |
101.6 x 203.1 x 40.6m | |||||||||||||||||||||||||||||
| PFC | YES | |||||||||||||||||||||||||||||
| Certification | - | |||||||||||||||||||||||||||||
| For purchases and samples | CONTACT US | |||||||||||||||||||||||||||||
Note: 1.*In any condition, the total power of the product must not exceed the nominal power of 600 W and the output current cannot exceed the nominal output current;
2.* Standby power: provides a separate 5V/1A output, it is recommended to use it with the main circuit.
Data sheet
- Output Regulation Type
- Constant Voltage / CV
- Output Voltage VDC
- 12
15
24
27
36
48 - Input Voltage VAC
- 80-277VAC
90~264VAC - Operating Temperature
- -40°C / +70°C
- Rating
- 453
- Power W
- 600
- PFC
- Yes
- Mechanical Mounting Format
- Boxed - Frame Assembly
- Efficiency
- 94%
- Dimensions
- 101.6x203.1x40.6mm
- Output Current A
- 12.5
16.7
22.3
25
40
50 - Certifications
- This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
- Applications
- Industrial Automation
LED Power Supply
Security - Input Voltage VAC (Nominal)
- 110
220 - Product Family
- Could you please provide more context or the full text you would like to have translated? "LMF" alone does not provide enough information for an accurate translation.
