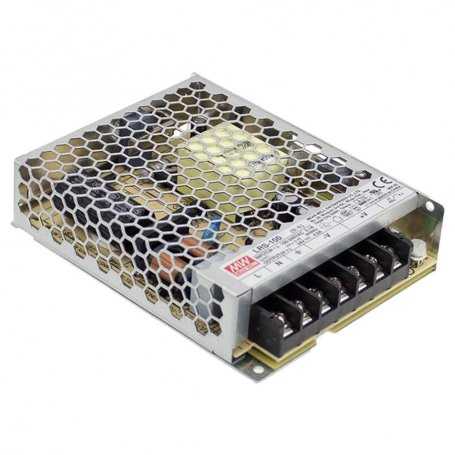

The product image may slightly differ as it is representative of the family and not the model.

LRS-100 Boxed Power Supply MeanWell 100W - Voltages 3.3V 5V. 12V. 15V. 24V. 36V. 48V

€19.32 LRS-100-3.3
€20.37 LRS-100-5
€16.31 LRS-100-12
€18.55 LRS-100-15
€15.40 LRS-100-24
€18.55 LRS-100-36
€18.55 LRS-100-48

€13.23 Tax excluded

€13.23 Tax excluded

check Available

Buy it now and receive it 11/27/24 with TNT Express

Quantity Unit price Total price Buy
1 €16.31 €16.31
5 €15.98 €79.92
10 €15.66 €156.58
20 €15.33 €306.63
Description

Boxed Power Supplies Mean Well series LRS-100, power 100 Watt in output voltages 3.3 5 12 15 24 36 48V

Mean Well Boxed Power Supplies LRS-100: 3 years warranty

The Boxed Power Supplies Mean Well of the LRS-100 series are entry level products, with 3 years warranty, they are suitable for industrial applications also thanks to their reduced thickness.

Main Features:

  • Economical and reliable
  • Input voltage selector (110/220VAC)
  • Working temperature up to 70°C
  • Safe: equipped with protections from overvoltage, short circuit and overload
  • [[class]] insulation (without ground)
  • Perfect for installation in industrial machines
  • Quiet: No fans
  • Warranty [[warranty]]
  • Efficiency up to [[efficiency]]
  • No-load consumption
  • Input: [[input]]
  • Certifications: [[certificates]]
  • Dimensions: [[dimensions]]

Applications:

  • Home and professional applications
  • Building automation
  • Power supply for electronic devices
  • Industrial automation
  • Electro mechanical automation

Our rating:

  • Reliability
  • Price
  • Features
  • ⚡⚡⚡⚡
  • ⚡⚡⚡⚡⚡
  • ⚡⚡⚡

Main technical specifications

MODELLRS-[[w]-3.3LRS-[[w]-5LRS-[[w]-12LRS-[[w]-15LRS-[[w]-24LRS-[[w]-36LRS-[[w]-48
Output Voltage  3.3V  5V 12V  15V 24V 36V 48V
Nominal Output Current  20A  18A 8.5A 7A 4.5A  2.8A 2.3A
Power (Nominal) 100 Watt
Dimmable NO
Max Efficiency  84.5%  86% 88% 88.5% 90%  90.5% 91%
Input Voltage VAC [[input]]
PFC NO
Dimensions [[dimensions]]

Also see:

Download the catalogues of Boxed Power Supplies in the attached tab.

Attachments

Certificato CE LRS-100

CERTIFICATO CE

file_download Download (90.66KB)

Certificato UL LRS-100

CERTIFICATO UL

file_download Download (20.73KB)

LRS-100 Datasheet V2

file_download Download (685.16KB)

Data sheet
Mean Well
LRS-100-12
New
1409 Items
4021087027977
Output Regulation Type
Constant Voltage / CV
Output Voltage VDC
3.3
5
12
15
24
36
48
Input Voltage VAC
90~264VAC
90~264VAC
Operating Temperature
-30°C / +70°C
Rating
453
Power W
100
PFC
No
Warranty
3 Years
Mechanical Mounting Format
Boxed - Frame Assembly
Efficiency
91%
Dimensions
129x97x30mm
Output Current mA
2300
2800
4500
7000
8500
18000
20000
Output Current A
2.3
2.8
4.5
7
8.5
18
20
Input Connector
At Speed
Certifications
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
UL
Applications
ITE does not translate to anything in English as it appears to be an abbreviation or acronym. The translation would depend on the context it is used in.
Industrial Automation
Security
Product Family
Could you please provide more context or clarify the text "LRS"? It appears to be an acronym or abbreviation, and understanding its context will help in providing an accurate translation.
TK-CODE
0/0. [0.0.NO.]/LTT-ON REQUEST
15/2. [0.50.NO.]/LTT-1
27/2. [46.50.NO.]/LTT-1
50/5. [178.0.NO.]/LTT-1
73/0. [137.50.SI.]/LTT-3
299/23. [949.50.SI.]/LTT-1
356/8. [1291.0.SI.]/LTT-1
