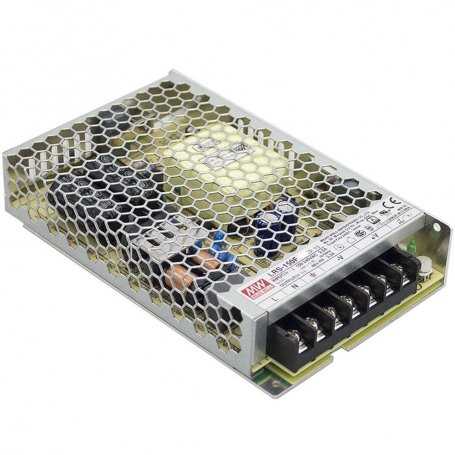

The product image may slightly differ as it is representative of the family and not the model.
LRS-150F MeanWell Metal Box Power Supply 150W Voltages 5V 12V 15V 24V 36V 48V
Description
Power Supply Mean Well series LRS-150F, power 150Watt, output voltages 5V, 12V, 15V, 24V, 36V, 48V
Mean Well closed AC/DC power supply LRS-150F series
The LRS-150F series is a 150W closed AC/DC power supply with easy installation, designed specifically for applications like ITE applications, industrial automation.
The RS-75 series operates with an input voltage of 88~264VAC, it is mainly required for industrial applications.
Features
- Universal AC input
- Resists 300 V AC input surge for 5 seconds
- No-load power consumption
- Compact and low profile 1U size
- High operating temperature up to 70 ° C
- Protections from: short circuit, overload, overvoltage, over temperature
- Free air convection cooling
- Compliant with IEC / EN 60335-1 (PD3) and IEC / EN61558-1, 2-16 for household appliances
- Operating altitude up to 5000 meters
- Resists 5G vibration test
- LED indicator for power on
- High efficiency and high reliability
- Overvoltage Category III
- 100% full load burn-in test
- 3 years warranty
- Dimensions: 159x97x30mm
Applications:
- Industrial automation machines
- Industrial control system
- Mechanical and electrical equipment
- Instruments, equipment or electronic devices
Our rating:
- Reliability
- Price
- Features
-
- ⚡⚡⚡⚡
- ⚡⚡⚡⚡⚡
- ⚡⚡⚡
Mechanical Features
Main technical specifications
| MODEL | LRS-150F-5 | LRS-150F-12 | LRS-150F-15 | LRS-150F-24 | LRS-150F-36 | LRS-150F-48 | |||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DC output voltage | 5V | 12V | 15V | 24V | 36V | 48V | |||||||||||||||||||||||
| Output current A | 22A | 12.5A | 10A | 6.5A | 4.3A | 3.3A | |||||||||||||||||||||||
| Output Current mA | 22000mA | 12500mA | 10000mA | 6500mA | 4300mA | 3300mA | |||||||||||||||||||||||
| Rated output power | 110W | 150W | 150W | 156W | 154.8W | 158.4W | |||||||||||||||||||||||
| Efficiency | 85% | 87.5% | 89% | 89% | 89% | 90% | |||||||||||||||||||||||
| Input voltage | 85 ~ 264VAC | ||||||||||||||||||||||||||||
| Working temperature | -30 ~ +70 °C | ||||||||||||||||||||||||||||
| PFC | NO | ||||||||||||||||||||||||||||
| Dimensions | 159x97x30mm | ||||||||||||||||||||||||||||
| Certification | CE, CB, EAC, CCC | ||||||||||||||||||||||||||||
| For purchases and samples | CONTACT US | ||||||||||||||||||||||||||||
See also:
Download the power supply catalogs in the attached tab.
Discover more information about
Data sheet
- Output Regulation Type
- Constant Voltage / CV
- Output Voltage VDC
- 5
12
15
24
36
48 - Input Voltage VAC
- 90 ~ 264VAC
90 ~ 264VAC - Operating Temperature
- -30°C / +70°C
- Rating
- 453
- Power W
- 150
- PFC
- No
- Warranty
- 3 Years
- Mechanical Mounting Format
- Boxed - Frame Assembly
- Efficiency
- 90%
- Dimensions
- 159x97x30mm
- Output Current mA
- 3300
4300
6500
10000
12500
22000 - Output Current A
- 3.3
4.3
6.5
10
12.5
22 - Output Connection
- At Speed
- Certifications
- It appears that "CCC" does not provide enough context for an accurate translation. Could you please provide more information or a complete sentence?
Sure, but could you please provide the full text that you would like translated?
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details. - Applications
- ITE does not translate to anything in English as it appears to be an abbreviation or acronym. The translation would depend on the context it is used in.
Industrial Automation - Input Voltage VAC (Nominal)
- 110
220 - Product Family
