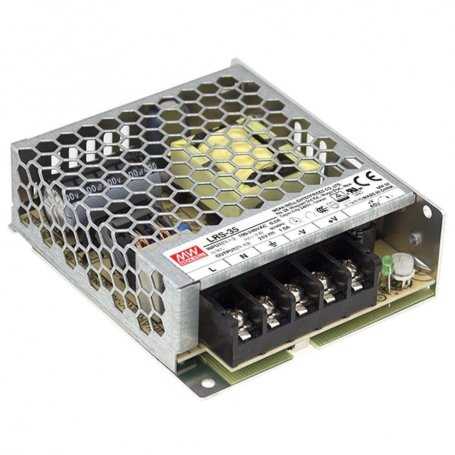

The product image may slightly differ as it is representative of the family and not the model.
LRS-35 MeanWell Boxed Power Supply 35W - Voltages 5V. 12V. 15V. 24V. 36V. 48V
Description
Boxed Power Supplies Mean Well series LRS-35, power 35 Watt in output voltages 5
12
15
24
36
48V
Mean Well Boxed Power Supplies LRS-35
The Boxed Power Supplies Mean Well of the LRS-35 series are entry level products, with a 3 year warranty, are suitable for industrial applications also thanks to their reduced thickness.
Models such as LRS-35-12, LRS-35-24 or LRS-35-48 are excellent solutions in industrial applications, as well as in automation or for powering electronics.
Main Features:
- Economical and reliable
- Operating temperature up to 70°C
- Safe: equipped with protections from overvoltage, short circuit and overload
- Perfect for installation in industrial machines
- Quiet: Absence of fans
- Warranty 3 Years
- Efficiency up to 89%
- No-load consumption
- Input:
- Certifications: This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details. UL
- Dimensions: 99x82x30mm
Applications:
- Home and professional applications
- Building automation
- Powering electronic devices
- Industrial automation
- Electro-mechanical automation
Our rating:
- Reliability
- Price
- Features
- ⚡⚡⚡⚡
- ⚡⚡⚡⚡⚡
- ⚡⚡⚡
Main technical specifications
| MODEL | LRS-35-5 | LRS-35-12 | LRS-35-15 | LRS-35-24 | LRS-35-36 | LRS-35-48 |
|---|---|---|---|---|---|---|
| Output voltage | 5V | 12V | 15V | 24V | 36V | 48V |
| Nominal output current | 7A | 3A | 2.4A | 1.5A | 1A | 0.8A |
| Power (Nominal) | 35 Watt | |||||
| Dimmable | NO | |||||
| Max Efficiency | 82% | 86% | 86% | 88% | 88% | 89% |
| Input Voltage VAC | ||||||
| PFC | NO | |||||
| Dimensions | 99x82x30mm | |||||
See also:
Download the Boxed Power Supplies catalogs in the attachments tab.
Data sheet
- Output Regulation Type
- Constant Voltage / CV
- Output Voltage VDC
- 5
12
15
24
36
48 - Input Voltage VAC
- 90~264VAC
90~264VAC - Operating Temperature
- -30°C / +70°C
- Rating
- 453
- Power W
- 35
- PFC
- No
- Warranty
- 3 Years
- Mechanical Mounting Format
- Boxed - Frame Assembly
- Efficiency
- 89%
- Dimensions
- 99x82x30mm
- Output Current mA
- 800
1000
1500
2400
3000
7000 - Output Current A
- 0.8
1
1.5
2.4
3
7 - Input Connector
- At Speed
- Certifications
- This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
UL - Applications
- ITE does not translate to anything in English as it appears to be an abbreviation or acronym. The translation would depend on the context it is used in.
Industrial Automation
Security - Input Voltage VAC (Nominal)
- 110
220 - Product Family
- Could you please provide more context or clarify the text "LRS"? It appears to be an acronym or abbreviation, and understanding its context will help in providing an accurate translation.
- TK-CODE
- 27/1. [102.0.NO.]/LTT-1
36/0. [141.0.NO.]/LTT-3
39/1. [149.0.NO.]/LTT-1
219/7. [695.50.SI.]/LTT-1
331/6. [1200.0.SI.]/LTT-1
540/12. [1960.50.SI.]/LTT-1
