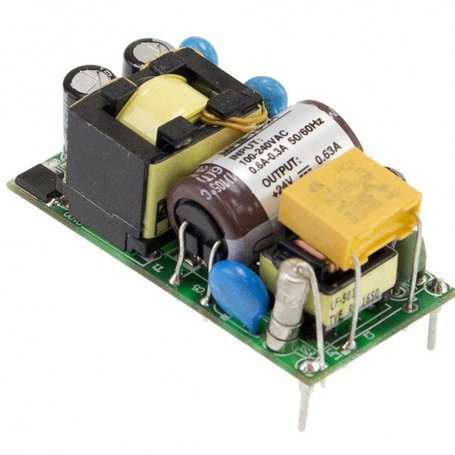

The product image may slightly differ as it is representative of the family and not the model.
MFM-15 - Power Supply Mean Well - Open 15W - Voltages 3.3V, 5V, 12V, 15V, 24V
Description
Power supply Mean Well series MFM-15, 15Watt power, output voltages 3.3V, 5V, 12V, 15V, 24V
The power supplies of the MFM-15 series from Mean Well are open frame power supplies and comply with international medical regulations 2xMOPP.
The power output is approximately 15W.
The entire product family of the MFM series is designed and certified for medical equipment, they comply with medical safety regulations and meet the BF insulation level (Body Floating).
The MFM-15 series complies with international medical regulations (2xMOPP) and EMC EN55011, perfectly adapting to all types of "patient contact" medical system equipment classified as BF
Features
- Compact dimensions 1.93"x0.94"
- Approved for medical safety (2xMOPP) according to ANSI / AAmi ES60601-1 and IEC / EN60601-1
- Suitable for BF applications
- Class EMI B for class II configuration
- Extremely low leakage current
- No-load power consumption
- No minimum load required
- Protections: short circuit, overload, overvoltage
- 3-year warranty
- Dimensions: 49x23.8x23mm
Applications:
- Portable medical devices
- Medical computer monitors
- Medical examination instruments
Our rating:
- Reliability
- Price
- Features
- ⚡⚡⚡⚡
- ⚡⚡⚡⚡⚡
- ⚡⚡⚡
Main technical specifications
| MODEL | MFM-15-3.3 | MFM-15-5 | MFM-15-12 | MFM-15-15 | MFM-15-24 | |||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DC output voltage | 3.3V | 5V | 12V | 15V | 24V | |||||||||||||||||||||||
| Nominal output current | 3.5A | 3A | 1.25A | 1A | 0.63A | |||||||||||||||||||||||
| Nominal output power | 11.6W | 15W | 15W | 15W | 15.1W | |||||||||||||||||||||||
| Efficiency | 83.5% | 85.5% | 86.5% | 87% | 86.5% | |||||||||||||||||||||||
| Input voltage | 80~264VAC | |||||||||||||||||||||||||||
| Working temperature | -35 ~ +85 °C | |||||||||||||||||||||||||||
| PFC | NO | |||||||||||||||||||||||||||
| Dimensions | 49x23.8x23mm | |||||||||||||||||||||||||||
| Certification | CE, CB, EAC | |||||||||||||||||||||||||||
| For purchases and samples | CONTACT US | |||||||||||||||||||||||||||
Also see:
Download the power supply catalogs in the attachments tab.
Discover more information about
Data sheet
- Output Regulation Type
- Constant Voltage / CV
- Output Voltage VDC
- 3.3
5
12
15
24 - Input Voltage VAC
- 90~264VAC
90~264VAC - Operating Temperature
- -35 ~ +85 ℃
- Rating
- 453
- Power W
- 15
- PFC
- No
- Warranty
- 3 Years
- Mechanical Mounting Format
- Open Frame
- Efficiency
- 87%
- Dimensions
- 49x23.8x23mm
- Output Current mA
- 630
1000
1250
3000
3500 - Output Current A
- 0.63
1
1.25
3
3.5 - Output Connection
- Connector
- Certifications
- Sure, but could you please provide the full text that you would like translated?
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details. - Special Features
- Medical Safety Approved (2xMOOP)
- Applications
- Electromedical
ITE does not translate to anything in English as it appears to be an abbreviation or acronym. The translation would depend on the context it is used in. - Input Voltage VAC (Nominal)
- 110
220 - Product Family
- MFM
