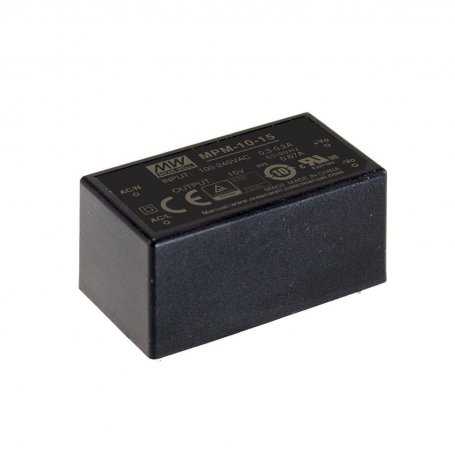

The product image may slightly differ as it is representative of the family and not the model.
MPM-10-5 - Meanwell - Encapsulated power supply 10W 5V - Input 100-240VAC
Description
- Encapsulated MeanWell Power Supply
- Constant Voltage CV
- Input: 80 ~ 264VAC
- Power: 10W
- Output: 5Vdc 2A
- MeanWell Encapsulated Power Supply
- Constant Voltage CV
- Input: 80 ~ 264VAC
- Power: 10W
- Output: 5Vdc 2A
- Compact design
- Medical Safety Approved (2xMOPP)
- Standby power consumption <0.075W
- Class II
- IP20
- Protections: Short circuit / Overload / Overvoltage / Overheating
- Warranty: 3 years
Data sheet
- Output Regulation Type
- Constant Voltage / CV
- Output Voltage VDC
- 5
- Input Voltage VAC
- 90~264VAC
90~264VAC - Operating Temperature
- -30°C / +85°C
- Power W
- 10
- IP Protection Grade
- IP20
- Warranty
- 3 Years
- Mechanical Mounting Format
- Closed Plastic Container
- Efficiency
- 81%
- Dimensions
- 45.7 x 25.4 x 21.5 mm
- Output Current mA
- 2000
- Output Current A
- 2
- Isolation Class
- Class 2
- Certifications
- This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
- Special Features
- Medical Safety Approved (2xMOPP)
- Applications
- Electromedical
ITE does not translate to anything in English as it appears to be an abbreviation or acronym. The translation would depend on the context it is used in. - Input Voltage VAC (Nominal)
- 110
220 - Product Family
- MPM
- LTT is an abbreviation or acronym that may not have a direct translation without context. It may stand for a company name, a tec
- 3
- MKP
- YES
- TK-CODE
- 5/0. [18.0.NO.]/LTT-3
- List Price
- 15.9
