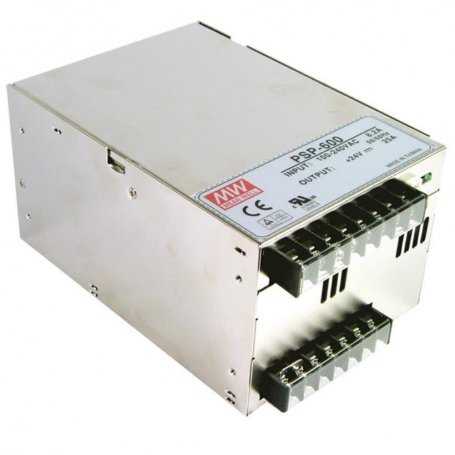

The product image may slightly differ as it is representative of the family and not the model.
PSP-600 MeanWell Power Supply Box 600W Voltages 5V 12V 13.5V 15V 24V 27V 48V
Description
Power supply Mean Well PSP-600 series, 600Watt power, output voltages 5V, 12V, 13.5V, 15V, 24V, 27V, 48V
The power supplies of the PSP-600 series by Mean Well are ac/dc power supplies in a closed metal container and have a fan for forced cooling.
The power output is approximately 600W.
Features
- Universal AC input 88 ~ 264VAC / Full range
- Built-in active PFC function
- High efficiency up to 87%
- Current sharing up to 2400 W (3+1)
- Built-in remote ON-OFF control
- Built-in remote sense function
- Fixed switching frequency at PFC: 88 KHz PWM: 100 KHz
- Forced air cooling by built-in DC fan
- Works up to 3000 meters altitude
- Protections: Short circuit, Overload, Over voltage, Over temperature
- 3 years warranty
- Dimensions: 170x120x93mm
Applications:
- Factory or automation control devices
- Industrial applications
- IT - Information Technology
Our rating:
- Reliability
- Price
- Features
-
- ⚡⚡⚡⚡
- ⚡⚡⚡⚡⚡
- ⚡⚡⚡
Mechanical Characteristics
Main technical specifications
| MODEL | PSP-600-5 | PSP-600-12 | PSP-600-13.5 | PSP-600-15 | PSP-600-24 | PSP-600-27 | PSP-600-48 | |||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DC output voltage | 5V | 12V | 13.5V | 15V | 24V | 27V | 48V | |||||||||||||||||||||||
| Nominal output current | 80A | 50A | 44.5A | 40A | 25A | 22.2A | 12.5A | |||||||||||||||||||||||
| Nominal power output | 400W | 600W | 600.75W | 600W | 600W | 599.4W | 600W | |||||||||||||||||||||||
| Efficiency | 79% | 84% | 85% | 85% | 86% | 86% | 87% | |||||||||||||||||||||||
| Input voltage | 88 ~ 264VAC | |||||||||||||||||||||||||||||
| Working temperature | -20 ~ +60 °C | |||||||||||||||||||||||||||||
| PFC | YES | |||||||||||||||||||||||||||||
| Dimensions | 170x120x93mm | |||||||||||||||||||||||||||||
| Certification | CE, CB, EAC, CCC | |||||||||||||||||||||||||||||
| For purchases and samples | CONTACT US | |||||||||||||||||||||||||||||
See also:
Download the power supply catalogs in the attachments tab.
REPLACES SP-500
Data sheet
- Output Regulation Type
- Constant Voltage / CV
- Output Voltage VDC
- 5
12
13.5
15
27
48 - Input Voltage VAC
- 88~264VAC
88~264VAC - Operating Temperature
- -4°F / +140°F
- Rating
- 453
- Power W
- 600
- PFC
- YES
- Warranty
- 3 Years
- Mechanical Mounting Format
- Boxed - Frame Assembly
- Efficiency
- 87%
- Dimensions
- 170x120x93mm
- Output Current mA
- 12500
22200
25000
40000
44500
50000
80000 - Output Current A
- 12.5
22.2
25
40
44.5
50
80 - Output Connection
- At Speed
- Certifications
- It appears that "CCC" does not provide enough context for an accurate translation. Could you please provide more information or a complete sentence?
Sure, but could you please provide the full text that you would like translated?
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details. - Applications
- ITE does not translate to anything in English as it appears to be an abbreviation or acronym. The translation would depend on the context it is used in.
Industrial Automation - Input Voltage VAC (Nominal)
- 110
220 - Product Family
- PSP
