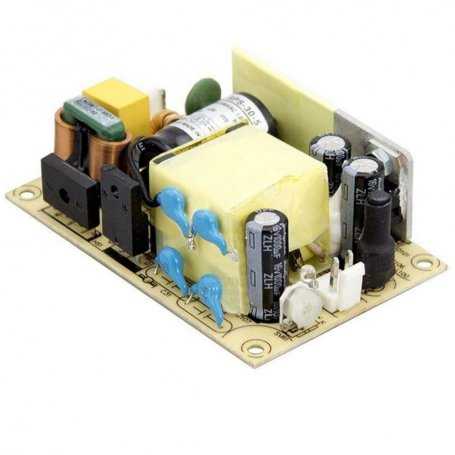

The product image may slightly differ as it is representative of the family and not the model.
RPS-30 - Power Supply Mean Well - Open 30W - Voltages 3.3V, 5V, 7.5V, 12V, 15V, 24V, 48V
Description
Power supply Mean Well RPS-30 series, 30Watt power, output voltages 3.3V, 5V, 7.5V, 12V, 15V, 24V, 48V
The power supplies of the RPS-30 series from Mean Well are open frame power supplies and comply with international medical regulations 2xMOPP.
The power delivered is approximately 30W.
The entire family of products in the RPS series is designed and certified for medical equipment, they comply with medical safety regulations and meet the BF isolation level (Body Floating).
The RPS-30 series complies with international medical regulations (2xMOPP) and EMC EN55011, perfectly adapting to all types of medical system equipment "in contact with the patient" classified BF.
Features
- Compact "3x2" dimensions
- Approved for medical safety (2xMOPP) according to ANSI / AAmi ES60601-1 and IEC / EN60601-1
- Suitable for BF applications with adequate
- Free air convection cooling
- EMI Class B for Class II configuration
- Energy consumption in the absence of load
- Extremely low leakage current
- Protections: short circuit, overload, overvoltage
- Life> 105,000 hours
- Operates up to 4000 meters above sea level
- 3-year warranty
- Dimensions: 76.2x50.8x24mm
Applications:
- Hemodialysis machine
- Medical computer monitors
- Devices for sleep apnea
Our rating:
- Reliability
- Price
- Features
-
- ⚡⚡⚡⚡
- ⚡⚡⚡⚡⚡
- ⚡⚡⚡
Main technical specifications
| MODEL | RPS-30-3.3 | RPS-30-5 | RPS-30-7.5 | RPS-30-12 | RPS-30-15 | RPS-30-24 | RPS-30-48 | |||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DC output voltage | 3.3V | 5V | 75V | 12V | 15V | 24V | 48V | |||||||||||||||||||||||
| Nominal output current | 6A | 6A | 4A | 2.5A | 2A | 1.25A | 0.625A | |||||||||||||||||||||||
| Nominal output power | 19.8W | 30W | 30W | 30W | 30W | 30W | 30W | |||||||||||||||||||||||
| Efficiency | 80% | 82% | 84% | 88% | 89% | 89.5% | 92% | |||||||||||||||||||||||
| Input voltage | 80~264VAC | |||||||||||||||||||||||||||||
| Working temperature | -30 ~ +70 °C | |||||||||||||||||||||||||||||
| PFC | NO | |||||||||||||||||||||||||||||
| Dimensions | 76.2x50.8x24mm | |||||||||||||||||||||||||||||
| Certification | CE, CB, EAC | |||||||||||||||||||||||||||||
| For purchases and samples | CONTACT US | |||||||||||||||||||||||||||||
See also:
Download the power supplies catalogs in the attachments tab.
Discover more information about
Data sheet
- Output Regulation Type
- Constant Voltage / CV
- Output Voltage VDC
- 3.3
5
7.5
12
15
24
48 - Input Voltage VAC
- 90~264VAC
90~264VAC - Operating Temperature
- -30°C / +70°C
- Rating
- 453
- Power W
- 30
- PFC
- No
- Warranty
- 3 Years
- Mechanical Mounting Format
- Open Frame
- Efficiency
- 92%
- Dimensions
- 76.2x50.8x24mm
- Output Current mA
- 625
1250
2000
2500
4000
6000 - Output Current A
- 0.625
1.25
2
2.5
4
6 - Output Connection
- Connector
- Certifications
- Sure, but could you please provide the full text that you would like translated?
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details. - Applications
- ITE does not translate to anything in English as it appears to be an abbreviation or acronym. The translation would depend on the context it is used in.
Industrial Automation - Input Voltage VAC (Nominal)
- 110
220 - Product Family
- Could you please provide more context or clarify what "RPS" stands for? It could have different meanings depending on the context.
