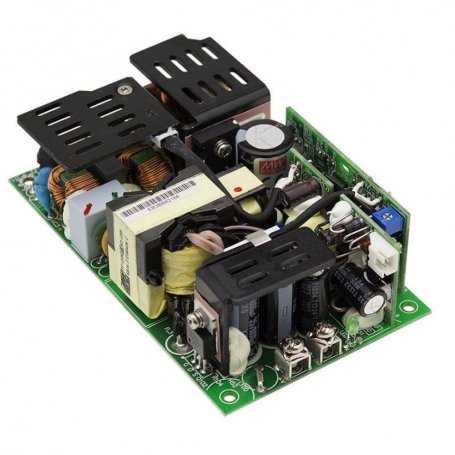

The product image may slightly differ as it is representative of the family and not the model.
RPS-300 - Power supply Mean Well 300W - Voltages 12V. 15V. 24V. 27V. 48V
Power supply Mean Well series RPS-300, power 300Watt, output voltages 12V, 15V, 24V, 27V, 48V
The power supplies of the RPS-300 series from Mean Well are open frame power supplies and comply with international medical regulations 2xMOPP.
The power output is approximately 300W.
The entire product family of the RPS series is designed and certified for medical equipment, they comply with medical safety regulations and meet the BF insulation level (Body Floating).
The RPS-300 series complies with international medical regulations (2xMOPP) and EMC EN55011, perfectly adapting to all types of "patient contact" medical system equipment classified as BF.
Features
- Compact dimensions 5"x3"
- Approved for medical safety (2xMOPP) according to ANSI / AAmi ES60601-1 and IEC / EN60601-1
- Suitable for BF applications
- 200W convection, 300W forced air
- No-load power consumption
- Protections: short circuit, overload, overvoltage, over temperature
- Extremely low leakage current
- No-load power consumption
- 5Vdc standby output, 12Vdc fan supply
- Typical lifespan >40000 hours
- 3 year warranty
- Dimensions: PCB type:127x76.2x35mm / Enclosed type:130x86x43mm
Applications:
- Dialysis machine
- Medical computer monitors
- Devices for sleep apnea
Our rating:
- Reliability
- Price
- Features
- ⚡⚡⚡⚡
- ⚡⚡⚡⚡⚡
- ⚡⚡⚡
Main technical specifications
MODEL | RPS-300-12 | RPS-300-15 | RPS-300-24 | RPS-300-27 | RPS-300-48 | |||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
DC output voltage | 12V | 15V | 24V | 27V | 48V | |||||||||||||||||||||||
Nominal output current | 25A | 20A | 12.5A | 11.12A | 6.25A | |||||||||||||||||||||||
Rated output power (Convection) | 200W | 200W | 200W | 200W | 200.2W | |||||||||||||||||||||||
Rated output power (20.5CFM) | 300W | 300W | 300W | 300W | 300W | |||||||||||||||||||||||
Efficiency | 90% | 90% | 92.5% | 93% | 93% | |||||||||||||||||||||||
Input voltage | 90~264VAC | |||||||||||||||||||||||||||
Working temperature | -30 ~ +70 °C | |||||||||||||||||||||||||||
Type C | Boxed Model | |||||||||||||||||||||||||||
PFC | YES | |||||||||||||||||||||||||||
Dimensions | PCB type:127x76.2x35mm / Enclosed type:130x86x43mm | |||||||||||||||||||||||||||
Certification | CE, CB, EAC | |||||||||||||||||||||||||||
For purchases and samples | CONTACT US |
See also:
Download the power supply catalogs in the attachments tab.
Discover more information about
- Output Regulation Type
- Constant Voltage / CV
- Output Voltage VDC
- 12
15
24
27
48 - Input Voltage VAC
- 90~264VAC
90~264VAC - Operating Temperature
- -30°C / +70°C
- Rating
- 453
- Power W
- 300
- PFC
- Yes
- Warranty
- 3 Years
- Mechanical Mounting Format
- Open Frame
- Efficiency
- 93%
- Dimensions
- Enclosed type: 130x86x43mm
PCB type:127x76.2x35mm - Output Current mA
- 6250
11120
12500
20000
25000 - Output Current A
- 6.25
11.12
12.5
20
25 - Output Connection
- Connector
- Certifications
- Sure, but could you please provide the full text that you would like translated?
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details. - Special Features
- Medical Safety Approved (2xMOPP)
- Applications
- ITE does not translate to anything in English as it appears to be an abbreviation or acronym. The translation would depend on the context it is used in.
Industrial Automation - Input Voltage VAC (Nominal)
- 110
220 - Product Family
- Could you please provide more context or clarify what "RPS" stands for? It could have different meanings depending on the context.
