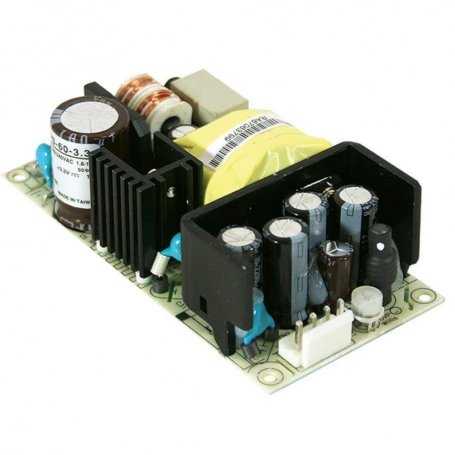

The product image may slightly differ as it is representative of the family and not the model.
RPS-60 - Power Supply Mean Well - Open 60W - Voltages 3.3V, 5V, 12V, 15V, 24V, 48V
Description
Power supply Mean Well RPS-60 series, 60Watt power, output voltages 3.3V, 5V, 12V, 15V, 24V, 48V
The power supplies of the RPS-60 series of Mean Well are open frame power supplies and comply with international medical regulations 2xMOPP.
The power output is around 60W.
The entire family of products in the RPS series is designed and certified for medical equipment, they comply with medical safety regulations and meet the BF insulation level (Body Floating).
The RPS-60 series complies with international medical regulations (2xMOPP) and EMC EN55011, perfectly adapting to all types of medical system equipment "in contact with the patient" classified BF
Features
- Compact "4x2" dimensions
- Approved for medical safety (2xMOPP) in accordance with ANSI / AAmi ES60601-1 , IEC / EN60601-1 and IEC/EN/UL 62368-1
- Suitable for BF applications
- Free air convection cooling
- EMI Class B for Class I configuration
- No-load power consumption
- Protections: short circuit, overload, overvoltage
- Operates up to 3000 meters altitude
- 3-year warranty
- Dimensions: 101.6x50.8x29mm
Applications:
- Dialysis machine
- Medical computer monitors
- Sleep apnea devices
Our rating:
- Reliability
- Price
- Features
- ⚡⚡⚡⚡
- ⚡⚡⚡⚡⚡
- ⚡⚡⚡
Main technical specifications
| MODEL | RPS-60-3.3 | RPS-60-5 | RPS-60-12 | RPS-60-15 | RPS-60-24 | RPS-60-48 | |||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DC output voltage | 3.3V | 5V | 12V | 15V | 24V | 48V | |||||||||||||||||||||||
| Nominal output current | 10A | 10A | 5A | 4A | 2.5A | 1.25A | |||||||||||||||||||||||
| Nominal output power | 33W | 50W | 60W | 60W | 60W | 60W | |||||||||||||||||||||||
| Efficiency | 74% | 79% | 84% | 85% | 87% | 86% | |||||||||||||||||||||||
| Input voltage | 90~264VAC | ||||||||||||||||||||||||||||
| Operating temperature | -20 ~ +70 °C | ||||||||||||||||||||||||||||
| PFC | NO | ||||||||||||||||||||||||||||
| Dimensions | 101.6x50.8x29mm | ||||||||||||||||||||||||||||
| Certification | CE, CB, EAC | ||||||||||||||||||||||||||||
| For purchases and samples | CONTACT US | ||||||||||||||||||||||||||||
See also:
Download the power supply catalogs in the attachments tab.
Discover more information about
Data sheet
- Output Regulation Type
- Constant Voltage / CV
- Output Voltage VDC
- 3.3
5
12
15
24
48 - Input Voltage VAC
- 90~264VAC
90~264VAC - Operating Temperature
- -4°F / +158°F
- Rating
- 453
- Power W
- 60
- PFC
- No
- Warranty
- 3 Years
- Mechanical Mounting Format
- Open Frame
- Efficiency
- 87%
- Dimensions
- 101.6x50.8x29mm
- Output Current mA
- 1250
2500
4000
5000
10000 - Output Current A
- 1.25
2.5
4
5
10 - Output Connection
- Connector
- Certifications
- Sure, but could you please provide the full text that you would like translated?
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details. - Applications
- ITE does not translate to anything in English as it appears to be an abbreviation or acronym. The translation would depend on the context it is used in.
Industrial Automation - Input Voltage VAC (Nominal)
- 110
220 - Product Family
- Could you please provide more context or clarify what "RPS" stands for? It could have different meanings depending on the context.
