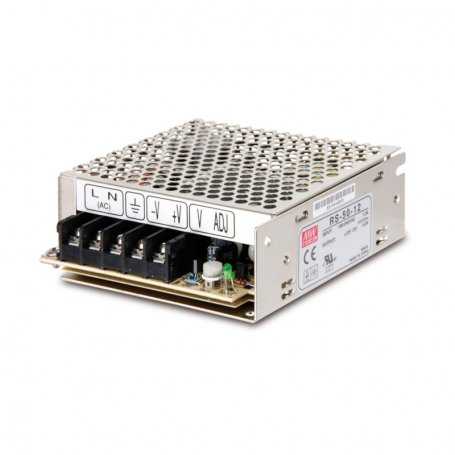

The product image may slightly differ as it is representative of the family and not the model.
RQ-50B - Meanwell - Metal Box Power Supply - 50W 5V - Input 100-240 VAC
Description
- MeanWell Power Supply / Mod. RQ-50B
- Power 50W
- Quadruple Output 5V 6A / 12V 1.5A / -5V 1A / -12V 1A
- Vin 88~264VAC
- MeanWell Power Supply / Mod. RQ-50B
- Power 50W
- Quadruple Output 5V 6A / 12V 1.5A / -5V 1A / -12V 1A
- Vin 88~264VAC
Data sheet
- Output Regulation Type
- Constant Voltage / CV
- Output Voltage VDC
- 5
- Output Voltage 4 VDC
- -12V
- Output Voltage 3 VDC
- -5V
- Output Voltage 2 VDC
- 12V
- Input Voltage VAC
- 88~264VAC
88~264VAC - Operating Temperature
- -25 °C / +70 °C
- Power W
- 50
- PFC
- No
- Output Voltage Nr.
- 4
- IP Protection Grade
- IP20
- Warranty
- 3 Years
- Mechanical Mounting Format
- Boxed - Frame Assembly
- Efficiency
- 74%
- Dimensions
- 99x97x36mm
- Output Current mA
- 6000
- Output Current A
- 6
- Output Current 4 mA
- 1000
- Output Current 4 A
- 1
- Output Current 3 mA
- 1000
- Output Current 3 A
- 1
- Output Current 2 mA
- 1500
- Output Current 2 A
- 1.5
- Output Connection
- At Speed
- Certifications
- This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
UL - Applications
- ITE does not translate to anything in English as it appears to be an abbreviation or acronym. The translation would depend on the context it is used in.
Industrial Automation - Input Voltage VAC (Nominal)
- 110
220 - Product Family
- Sure, please provide the text you would like to translate.
- LTT is an abbreviation or acronym that may not have a direct translation without context. It may stand for a company name, a tec
- 3
- MKP
- YES
- TK-CODE
- 5/0. [18.0.NO.]/LTT-3
- List Price
- 34.5
