RS-35 MeanWell Metal Box Power Supply 35W Voltages 3.3V 5V 12V 15V 24V 48V
zoom_out_map
chevron_left chevron_right

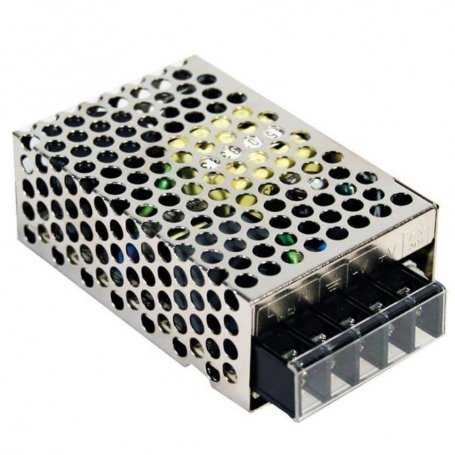

The product image may slightly differ as it is representative of the family and not the model.

RS-35 MeanWell Metal Box Power Supply 35W Voltages 3.3V 5V 12V 15V 24V 48V

€17.15 RS-35-3.3
€17.15 RS-35-5
€17.15 RS-35-12
€17.15 RS-35-15
€17.15 RS-35-24
€17.15 RS-35-48

€17.15 Tax excluded

€17.15 Tax excluded

error_outline Product available with different options

We will send you an email once the product becomes available. your email address will not be shared with anyone else.

Quantity Unit price Total price Buy
1 €17.15 €17.15
5 €16.81 €84.04
10 €16.46 €164.64
20 €16.12 €322.42
Description

Power supply Mean Well series RS-35, power 35Watt, output voltages 3.3V, 5V, 12V, 15V, 24V, 48V

Mean Well AC/DC enclosed power supply RS-35

The RS-35 series is a 35W enclosed AC/DC power supply with easy installation, it has been specifically designed for applications such as ITE applications, industrial automation.

The RS-35 series operates with an input voltage of 88~264VAC, it is mostly required for industrial applications.

Features

  • Universal AC input
  • Protections: short circuit, overload, overvoltage
  • Free air convection cooling
  • LED indicator for power on
  • 100% full load burn-in test
  • No load power consumption
  • Supports 300 VAC input surge for 5 seconds
  • Working temperature up to 70°C
  • Resists 5G vibration test
  • 3 years warranty
  • High efficiency, long life and high reliability
  • Dimensions: 78x51x28mm

Applications:

  • Industrial automation
  • ITE

Our rating:

  • Reliability
  • Price
  • Features
    • ⚡⚡⚡⚡
    • ⚡⚡⚡⚡⚡
    • ⚡⚡⚡

Mechanical Features

Mechanical Features RS-25

Main technical specifications

MODELRS-25-3.3RS-25-5RS-25-12RS-25-15RS-25-24RS-25-48
DC output voltage 3.3V 5V 12V 15V 24V 48V
Output current A 6A 5A 2.1A 1.7A 1.1A 0.57A
Output current mA 6000mA 5000mA 2100mA 1700mA 1100mA 570mA
Rated output power 19.8W 25W 25.2W 25.5W 26.4W 27.36W
Efficiency 73.5% 78.5% 81.5% 83.5% 86% 85%
Input voltage 88~264VAC
Working temperature -20 ~ +70 °C
PFC NO
Dimensions 78x51x28mm
Certification CE, CB, EAC, CCC
For purchases and samples CONTACT US

See also:

Download the power supply catalogs in the attachments tab.


Discover more information on

Data sheet
Mean Well
RS-35-3.3
New
0 Items
7438645891968
Output Regulation Type
Constant Voltage / CV
Output Voltage VDC
3.3
5
12
15
24
48
Input Voltage VAC
88 ~ 264VAC
90 ~ 264VAC
Operating Temperature
-25°C / +70°C
Rating
453
Power W
35
PFC
No
Warranty
3 Years
Mechanical Mounting Format
Boxed - Frame Assembly
Efficiency
88.50%
Dimensions
99x82x36mm
Output Current mA
800
1500
2400
3000
7000
Output Current A
0.8
1.5
2.4
3
7
Output Connection
At Speed
Certifications
It appears that "CCC" does not provide enough context for an accurate translation. Could you please provide more information or a complete sentence?
Sure, but could you please provide the full text that you would like translated?
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
Applications
ITE does not translate to anything in English as it appears to be an abbreviation or acronym. The translation would depend on the context it is used in.
Industrial Automation
Product Family
