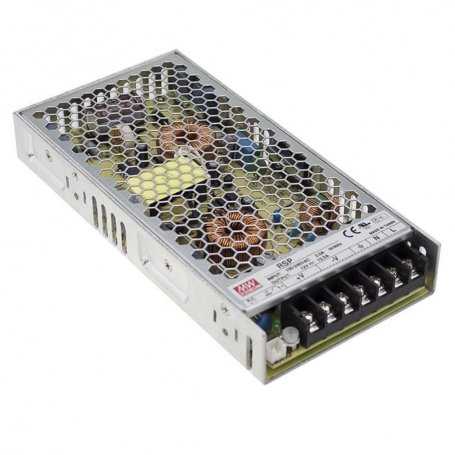

The product image may slightly differ as it is representative of the family and not the model.
RSP-100 MeanWell Power Supply Box 100W Voltages 3.3V 5V 7.5V 12V 13.5V 15V 24V 27V 48V
Description
Power supply Mean Well RSP-100 series, 100Watt power, Output voltages 3.3V, 5V, 7.5V, 12V, 13.5V, 15V, 24V, 27V, 48V
The power supplies of theRSP-100 series Mean Well I amac/dc power suppliesin a closed metal container.
The power output is about 100W.
The entire RSP series product family is designed and certified for ITE applications, industrial automation and telecommunications.
Characteristics
- Universal AC input / Full range
- Active PFC function built-in
- High efficiency up to 88%
- Free air convection cooling
- Built-in remote ON-OFF control
- Protections: short circuit / overload / overvoltage / overtemperature
- LED indicator for power on
- 3 years warranty
- Dimensions: 179x99x30mm
Applications:
- Factory or automation control devices
- Industrial applications
Our vote:
- Reliability
- Price
- Characteristics
-
- [[voto1]You haven't provided any Italian text to translate. Please provide the text you want to be translated into English.
- [[voto2]You haven't provided any Italian text to translate. Please provide the text you want to be translated into English.
- [[voto3]You haven't provided any Italian text to translate. Please provide the text you want to be translated into English.
Main technical specifications
| MODEL | RSP-100-3.3 | RSP-100-5 | RSP-100-7.5 | RSP-100-12 | RSP-100-13.5 | RSP-100-15 | RSP-100-24 | RSP-100-27 | RSP-100-48 | |||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DC output voltage | 3.3V | 5V | 7.5V | 12V | 13.5V | 15V | 24V | 27V | 48V | |||||||||||||||||||||||
| Nominal Output Current | 20A | 20A | 13.5A | 8.5A | 7.5A | 6.7A | 4.2A | 3.8A | 2.1A | |||||||||||||||||||||||
| Current output range | 0 ~ 20A | 0 ~ 20A | 0 ~ 13.5A | 0 ~ 8.5A | 0 ~ 7.5A | 0 ~ 6.7A | 0 ~ 4.2A | 0 ~ 3.8A | 0 ~ 2.1A | |||||||||||||||||||||||
| Nominal output power | 66W | 100W | 101.25W | 102W | 101.25W | 100.5W | 100.8W | 102.6W | 100.8W | |||||||||||||||||||||||
| Efficiency | 83% | 86% | 87% | 86% | 86.5% | 87% | 87% | 87% | 88% | |||||||||||||||||||||||
| Input voltage | 85 ~ 264VAC | |||||||||||||||||||||||||||||||
| Working temperature | -30 ~ +70 °C | |||||||||||||||||||||||||||||||
| PFC | YES | |||||||||||||||||||||||||||||||
| Dimensions | 179x99x30mm | |||||||||||||||||||||||||||||||
| Certification | CE, CB, EAC | |||||||||||||||||||||||||||||||
| For purchases and sampling | CONTACT US | |||||||||||||||||||||||||||||||
See also:
Download the power supply catalogs in the attachments tab.
Data sheet
- Output Regulation Type
- Constant Voltage / CV
- Output Voltage VDC
- 3.3
5
7.5
12
13.5
15
24
27
48 - Input Voltage VAC
- 90 ~ 264VAC
90 ~ 264VAC - Operating Temperature
- -30°C / +70°C
- Rating
- 453
- Power W
- 100
- PFC
- YES
- Warranty
- 3 Years
- Mechanical Mounting Format
- Boxed - Frame Assembly
- Efficiency
- 88%
- Dimensions
- 179x99x30mm
- Output Current mA
- 3200
5600
6300
10000
11200
12500
20000
30000 - Output Current A
- 2.1
3.8
4.2
6.7
7.5
8.5
13.5
20 - Output Connection
- At Speed
- Certifications
- It appears that "CCC" does not provide enough context for an accurate translation. Could you please provide more information or a complete sentence?
Sure, but could you please provide the full text that you would like translated?
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
UL - Applications
- ITE does not translate to anything in English as it appears to be an abbreviation or acronym. The translation would depend on the context it is used in.
Industrial Automation - Input Voltage VAC (Nominal)
- 110
220 - Product Family
