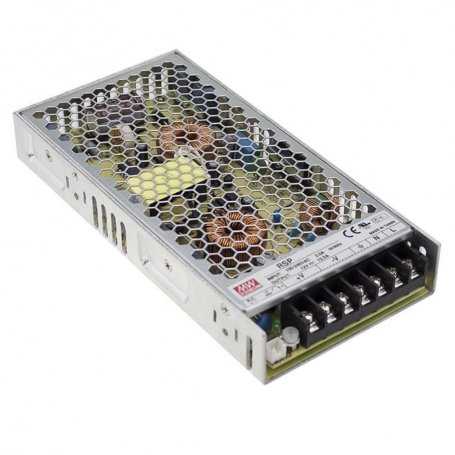

The product image may slightly differ as it is representative of the family and not the model.
RSP-150-MeanWell Power Supply Box 150W Voltages 3.3V 5V 7.5V 12V 13.5V 15V 24V 27V 48V
Power Supply Mean Well series RSP-150, power 150Watt, output voltages 3.3V, 5V, 7.5V, 12V, 13.5V, 15V, 24V, 27V, 48V
The power supplies of the RSP-150 series by Mean Well are ac/dc power supplies in a closed metal container.
The power output is approximately 150W.
The entire product family of the RSP series is designed and certified for ITE applications, industrial automation, and telecommunications.
Features
- Universal AC input / Full range
- Built-in active PFC function
- High efficiency up to 90%
- Free air convection cooling
- Built-in remote ON-OFF control
- Protections: short circuit / overload / over voltage / over temperature
- LED indicator for power on
- 3 years warranty
- Dimensions: 199x99x30mm
Applications:
- Factory control or automation devices
- Industrial applications
Our rating:
- Reliability
- Price
- Features
-
- ⚡⚡⚡
- ⚡⚡⚡⚡⚡

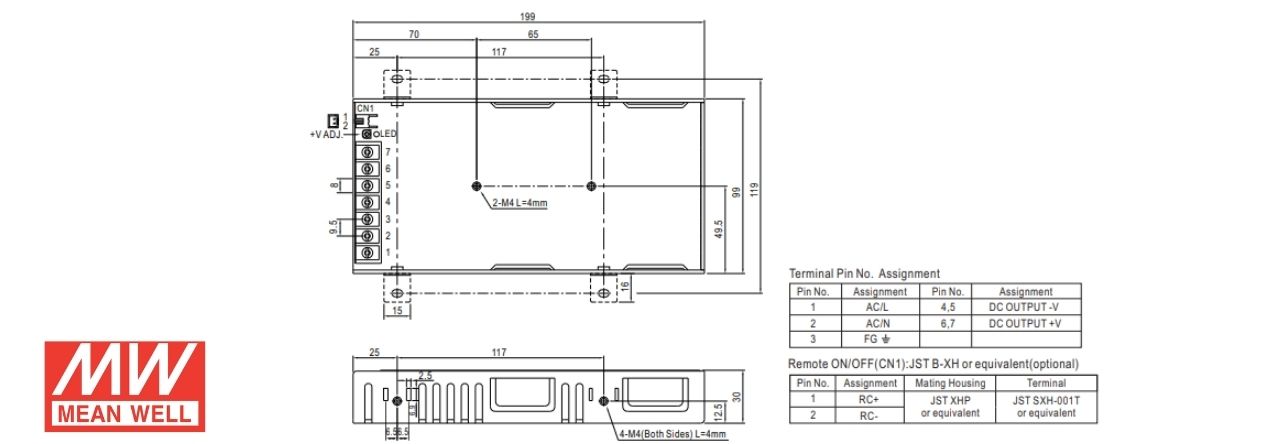

Mechanical Features
Main technical specifications
MODEL | RSP-150-3.3 | RSP-150-5 | RSP-150-7.5 | RSP-150-12 | RSP-150-13.5 | RSP-150-15 | RSP-150-24 | RSP-150-27 | RSP-150-48 | |||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
DC output voltage | 3.3V | 5V | 7.5V | 12V | 13.5V | 15V | 24V | 27V | 48V | |||||||||||||||||||||||
Nominal output current | 30A | 30A | 20A | 12.5A | 11.2A | 10A | 6.3A | 5.6A | 3.2A | |||||||||||||||||||||||
Output current range | 0 ~ 30A | 0 ~ 30A | 0 ~ 20A | 0 ~ 12.5A | 0 ~ 11.2A | 0 ~ 10A | 0 ~ 6.3A | 0 ~ 5.6A | 0 ~ 3.2A | |||||||||||||||||||||||
Nominal output power | 99W | 150W | 150W | 150W | 151.2W | 150W | 151.2W | 151.2W | 153.6W | |||||||||||||||||||||||
Efficiency | 81.5% | 87% | 88.5% | 90% | 87.5% | 88.5% | 89% | 89.5% | 90% | |||||||||||||||||||||||
Input voltage | 85 ~ 264VAC | |||||||||||||||||||||||||||||||
Working temperature | -30 ~ +70 °C | |||||||||||||||||||||||||||||||
PFC | YES | |||||||||||||||||||||||||||||||
Dimensions | 199x99x30mm | |||||||||||||||||||||||||||||||
Certification | CE, CB, EAC | |||||||||||||||||||||||||||||||
For purchases and samples | CONTACT US |
See also:
Download the power supply catalogs in the attachments tab.
- Output Regulation Type
- Constant Voltage / CV
- Output Voltage VDC
- 3.3
5
7.5
12
13.5
15
24
27
48 - Input Voltage VAC
- 90 ~ 264VAC
90 ~ 264VAC - Operating Temperature
- -30°C / +70°C
- Rating
- 3.5
453 - Power W
- 150
- PFC
- YES
- Warranty
- 3 Years
- Mechanical Mounting Format
- Boxed - Frame Assembly
- Efficiency
- 90%
- Dimensions
- 199x99x30mm
- Output Current mA
- 3200
5600
6300
10000
11200
12500
20000
30000 - Output Current A
- 3.2
5.6
6.3
10
11.2
12.5
20
30 - Output Connection
- At Speed
- Certifications
- It appears that "CCC" does not provide enough context for an accurate translation. Could you please provide more information or a complete sentence?
Sure, but could you please provide the full text that you would like translated?
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
UL - Applications
- ITE does not translate to anything in English as it appears to be an abbreviation or acronym. The translation would depend on the context it is used in.
Industrial Automation - Input Voltage VAC (Nominal)
- 110
220 - Product Family
- Sure, I'd be happy to help. Please provide the text you would like translated from Italian to English.
