The product image may slightly differ as it is representative of the family and not the model.

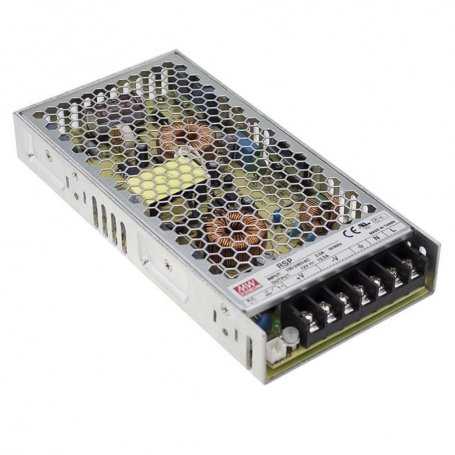

RSP-200 MeanWell Power Supply Box 200W Voltages 2.5V 3.3V 4V 5V 7.5V 12V 13.5V 15V 24V 27V 36V 48V
Description
Power supply Mean Well RSP-200 series, 200Watt power, Output voltages 2.5V, 3.3V, 4V, 5V, 7.5V, 12V, 13.5V, 15V, 24V, 27V, 36V, 48V
Power Supply Mean Well AC/DC enclosed 200W for industrial automation
The power supplies of the Mean Well RSP-200 series are AC/DC power supplies in a closed metal container.
The power output is about 200W.
The entire family of RSP series products is designed and certified for ITE applications, industrial automation, and telecommunications.
Features
- Universal AC input / Full range
- Built-in active PFC function
- High efficiency up to 89%
- Free air convection cooling
- Built-in remote ON-OFF control
- Protections: Short circuit / Overload / Overvoltage / Over temperature
- LED indicator for power on
- 3 years warranty
- Dimensions: 215x115x30mm
Applications:
- Factory control or automation devices
- Industrial applications
Our rating:
- Reliability
- Price
- Features
-
- ⚡⚡⚡⚡
- ⚡⚡⚡⚡⚡
- ⚡⚡⚡

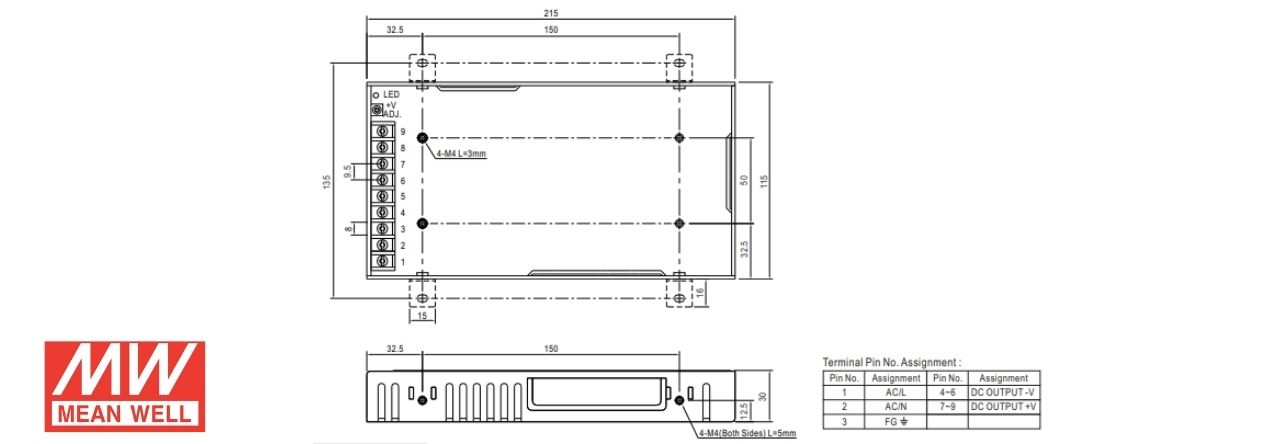

Mechanical Features
Main technical specifications
| MODEL | RSP-200-2.5 | RSP-200-3.3 | RSP-200-4 | RSP-200-5 | RSP-200-7.5 | RSP-200-12 | RSP-200-13.5 | RSP-200-15 | RSP-200-24 | RSP-200-27 | RSP-200-36 | RSP-200-48 | |||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DC output voltage | 2.5V | 3.3V | 4V | 5V | 7.5V | 12V | 13.5V | 15V | 24V | 27V | 36V | 48V | |||||||||||||||||||||||
| Nominal output current | 40A | 40A | 40A | 40A | 26.7A | 16.7A | 14.9A | 13.4A | 8.4A | 7.5A | 5.56A | 4.2A | |||||||||||||||||||||||
| Output current range | 0 ~ 40A | 0 ~ 40A | 0 ~ 40A | 0 ~ 40A | 0 ~ 26.7A | 0 ~ 16.7A | 0 ~ 14.9A | 0 ~ 13.4A | 0 ~ 8.4A | 0 ~ 7.5A | 0 ~ 5.56A | 0 ~ 4.2A | |||||||||||||||||||||||
| Nominal output power | 100W | 132W | 160W | 200W | 200.25W | 200.4W | 201.15W | 201W | 201.6W | 202.5W | 200.16W | 201.6W | |||||||||||||||||||||||
| Efficiency | 79.5% | 81.5% | 84% | 85.5% | 89% | 89% | 89% | 89.5% | 89.5% | 89% | 90% | 90% | |||||||||||||||||||||||
| Input voltage | 88 ~ 264VAC | ||||||||||||||||||||||||||||||||||
| Working temperature | -30 ~ +70 °C | ||||||||||||||||||||||||||||||||||
| PFC | YES | ||||||||||||||||||||||||||||||||||
| Dimensions | 215x115x30mm | ||||||||||||||||||||||||||||||||||
| Certification | CE, CB, EAC | ||||||||||||||||||||||||||||||||||
| For purchases and samples | CONTACT US | ||||||||||||||||||||||||||||||||||
See also:
Download the LED power supply catalogs in the attachments tab.
Data sheet
- Output Regulation Type
- Constant Voltage / CV
- Output Voltage VDC
- 2.5
3.3
4
7.5
12
13.5
15
24
27
36
48 - Input Voltage VAC
- 90 ~ 264VAC
90 ~ 264VAC - Operating Temperature
- -30°C / +70°C
- Rating
- 453
- Power W
- 200
- PFC
- YES
- Warranty
- 3 Years
- Mechanical Mounting Format
- Boxed - Frame Assembly
- Efficiency
- 90%
- Dimensions
- 215x115x30mm
- Output Current mA
- 4200
5560
7500
8400
13400
14900
16700
26700
40000 - Output Current A
- 4.2
5.56
7.5
8.4
13.4
14.9
16.7
26.7
40 - Output Connection
- At Speed
- Certifications
- It appears that "CCC" does not provide enough context for an accurate translation. Could you please provide more information or a complete sentence?
Sure, but could you please provide the full text that you would like translated?
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
UL - Applications
- ITE does not translate to anything in English as it appears to be an abbreviation or acronym. The translation would depend on the context it is used in.
Industrial Automation - Input Voltage VAC (Nominal)
- 110
220 - Product Family
