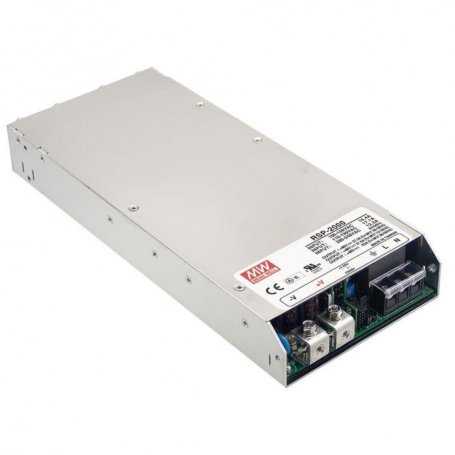

The product image may slightly differ as it is representative of the family and not the model.
RSP-2000 MeanWell Metal Box Power Supply 2000W Voltages 12V 24V 48V
Description
Power supply Mean Well series RSP-2000, power 2000Watt, output voltages 12V, 24V, 48V
The power supplies of the RSP-2000 series by Mean Well are ac/dc power supplies in a closed metal case and have a fan for forced cooling.
The output power is about 2000W.
All the products of the RSP series are designed and certified for ITE, industrial automation and telecommunications applications.
Features
- Universal AC input
- Built-in active PFC function
- High efficiency up to 92%
- Forced air cooling by built-in DC fan
- Protections: short circuit, overload, overvoltage, overheating
- 5 years warranty
- Programmable output voltage
- Optional conformal coating
- Dimensions: 295x127x41mm
Applications:
- Factory or automation control devices
- Industrial applications
Our rating:
- Reliability
- Price
- Features
-
- ⚡⚡⚡⚡
- ⚡⚡⚡⚡⚡
- ⚡⚡⚡
Main technical specifications
| MODEL | RSP-2000-12 | RSP-2000-24 | RSP-2000-48 | |||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DC output voltage | 12V | 24V | 48V | |||||||||||||||||||||||
| Nominal output current | 100A | 80A | 42A | |||||||||||||||||||||||
| Output current range | 0 ~ 100A | 0 ~ 80A | 0 ~ 42A | |||||||||||||||||||||||
| Nominal output power | 1200W | 1920W | 2016W | |||||||||||||||||||||||
| Efficiency | 87% | 90.5% | 92% | |||||||||||||||||||||||
| Input voltage | 90 ~ 264VAC | |||||||||||||||||||||||||
| Working temperature | -35 ~ +70 °C | |||||||||||||||||||||||||
| PFC | YES | |||||||||||||||||||||||||
| Dimensions | 295x127x41mm | |||||||||||||||||||||||||
| Certification | CE, CB, EAC, CCC | |||||||||||||||||||||||||
| For purchases and samples | CONTACT US | |||||||||||||||||||||||||
See also:
Download the power supply catalogs in the attachments tab.
Data sheet
- Output Regulation Type
- Constant Voltage / CV
- Output Voltage VDC
- 12
24
48 - Input Voltage VAC
- 90 ~ 264VAC
90 ~ 264VAC - Operating Temperature
- -35 ~ +70 °C
- Rating
- 453
- Power W
- 2000
- PFC
- YES
- Warranty
- 5 Years
- Mechanical Mounting Format
- Boxed - Frame Assembly
- Efficiency
- 92%
- Dimensions
- 295x127x41mm
- Output Current mA
- 42000
80000
100000 - Output Current A
- 42
80
100 - Output Connection
- At Speed
- Certifications
- It appears that "CCC" does not provide enough context for an accurate translation. Could you please provide more information or a complete sentence?
Sure, but could you please provide the full text that you would like translated?
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details. - Applications
- ITE does not translate to anything in English as it appears to be an abbreviation or acronym. The translation would depend on the context it is used in.
Industrial Automation - Input Voltage VAC (Nominal)
- 110
220 - Product Family
- Sure, I'd be happy to help. Please provide the text you would like translated from Italian to English.
