The product image may slightly differ as it is representative of the family and not the model.

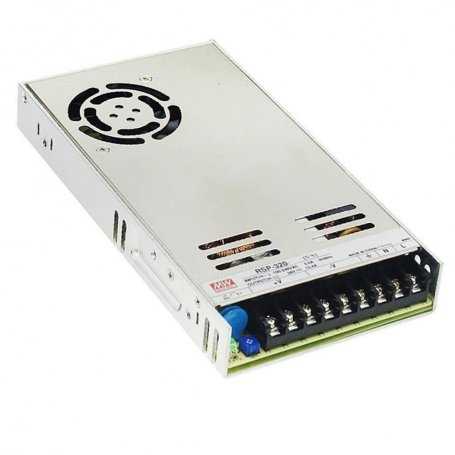

RSP-320 MeanWell Power Supply Box 320W Voltages 2.5V 3.3V 4V 5V 7.5V 12V 13.5V 15V 24V 27V 36V 48V
Description
Power supply Mean Well series RSP-320, power 320Watt, output voltages 2.5V, 3.3V, 4V, 5V, 7.5V, 12V, 13.5V, 15V, 24V, 27V, 36V, 48V
Power supply Mean Well AC/DC series RSP-320 for industrial automation
The power supplies of theRSP-320 series Mean Well I amac/dc power suppliesin a closed metal container and have a fan for forced cooling.
The power output is approximately 320W.
The entire RSP series product family is designed and certified for ITE applications, industrial automation and telecommunications.
Characteristics
- Universal AC input 88 ~ 264VAC / Full range
- Active PFC function built-in
- High efficiency up to 90%
- Forced air cooling through the integrated DC fan, with fan speed control function.
- Protections: short circuit / overload / overvoltage / overtemperature
- LED indicator for power on
- 3 years warranty
- Dimensions: 215x115x30mm
Applications:
- Factory or automation control devices
- Industrial applications
- IT - Information Technology
- Telecommunications
- 3D Printers
Our vote:
- Reliability
- Price
- Characteristics
-
- [[voto1]You haven't provided any Italian text to translate. Please provide the text you want to be translated into English.
- [[voto2]You haven't provided any Italian text to translate. Please provide the text you want to be translated into English.
- [[voto3]You haven't provided any Italian text to translate. Please provide the text you want to be translated into English.

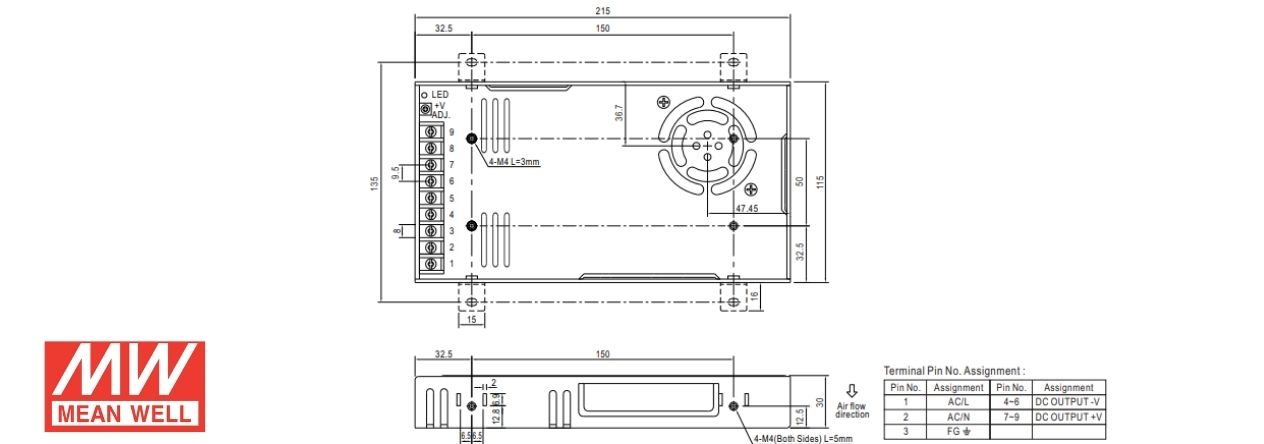

Mechanical Features
Main technical specifications
| MODEL | RSP-320-2.5 | RSP-320-3.3 | RSP-320-4 | RSP-320-5 | RSP-320-7.5 | RSP-320-12 | RSP-320-13.5 | RSP-320-15 | RSP-320-24 | RSP-320-27 | RSP-320-36 | RSP-320-48 | |||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DC output voltage | 2.5V | 3.3V | 4V | 5V | 7.5V | 12V | 13.5V | 15V | 24V | 27V | 36V | 48V | |||||||||||||||||||||||
| Nominal Output Current | 60A | 60A | 60A | 60A | 40A | 26.7A | 23.8A | 21.4A | 13.4A | 11.9A | 8.9A | 6.7A | |||||||||||||||||||||||
| Current output range | 0 ~ 60A | 0 ~ 60A | 0 ~ 60A | 0 ~ 60A | 0 ~ 40A | 0 ~ 26.7A | 0 ~ 23.8A | 0 ~ 21.4A | 0 ~ 13.4A | 0 ~ 11.9A | 0 ~ 8.9A | 0 ~ 6.7A | |||||||||||||||||||||||
| Nominal output power | 150W | 198W | 240W | 300W | 300W | 320.4W | 321.3W | 321W | 321.6W | 321.3W | 320.4W | 321.6W | |||||||||||||||||||||||
| Efficiency | 75.5% | 79.5% | 81% | 83% | 88% | 88% | 88% | 88.5% | 89% | 89% | 89.5% | 90% | |||||||||||||||||||||||
| Input voltage | 88 ~ 264VAC | ||||||||||||||||||||||||||||||||||
| Working temperature | -30 ~ +70 °C | ||||||||||||||||||||||||||||||||||
| PFC | YES | ||||||||||||||||||||||||||||||||||
| Dimensions | 215x115x30mm | ||||||||||||||||||||||||||||||||||
| Certification | CE, CB, EAC, CCC | ||||||||||||||||||||||||||||||||||
| For purchases and sampling | CONTACT US | ||||||||||||||||||||||||||||||||||
See also:
Download the power supply catalogs in the attachments tab.
Discover more information about
Data sheet
- Output Regulation Type
- Constant Voltage / CV
- Output Voltage VDC
- 2.5
3.3
4
5
7.5
12
13.5
15
24
27
36
48 - Input Voltage VAC
- 90 ~ 264VAC
90 ~ 264VAC - Operating Temperature
- -30°C / +70°C
- Rating
- 453
- Power W
- 320
- PFC
- YES
- Warranty
- 3 Years
- Mechanical Mounting Format
- Boxed - Frame Assembly
- Efficiency
- 90%
- Dimensions
- 215x115x30mm
- Output Current mA
- 6700
8900
11900
13400
21400
23800
26700
40000
60000 - Output Current A
- 6.7
8.9
11.9
13.4
21.4
23.8
26.7
40
60 - Output Connection
- At Speed
- Certifications
- It appears that "CCC" does not provide enough context for an accurate translation. Could you please provide more information or a complete sentence?
Sure, but could you please provide the full text that you would like translated?
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
UL - Applications
- ITE does not translate to anything in English as it appears to be an abbreviation or acronym. The translation would depend on the context it is used in.
Industrial Automation - Input Voltage VAC (Nominal)
- 110
220 - Product Family
- Sure, I'd be happy to help. Please provide the text you would like translated from Italian to English.
