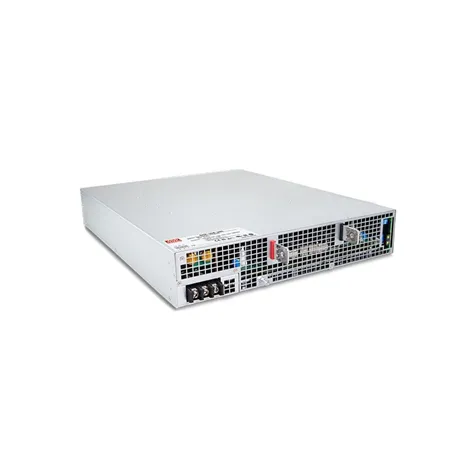

The product image may slightly differ as it is representative of the family and not the model.

Non disponibile - contattaci

SHP-30K-HV - Power Supply Mean Well - Three-phase boxed 30KW - Voltages 55V, 115V, 230V, 380V

€0.00 SHP-30K-55
€0.00 SHP-30K-115
€0.00 SHP-30K-230
€0.00 SHP-30K-380

€0.00 Tax excluded

€0.00 Tax excluded

block Non disponibile - contattaci

We will send you an email once the product becomes available. your email address will not be shared with anyone else.

Quantity Unit price Total price Buy
1 €0.00 €0.00
5 €0.00 €0.00
10 €0.00 €0.00
20 €0.00 €0.00
Description

Available models: SHP-30K-55, SHP-30K-115, SHP-30K-230, SHP-30K-380

The series SHP-30K-HV It is an AC/DC power supply. 30KW with entrance three-phase 3 wires. This series operates on a wide range of input. Three-phase AC (3 wires / 340~530VAC) and does not require neutral. It offers models with DC outputs.55V/115V/230V/380V) mainly requested by various industries. It can operate at room temperatures up to 70°C with forced air cooling. In addition, the SHP-30K-HV series offers extensive design flexibility by providing various integrated functions such as the programming of the exit, the active sharing of the current, the remote control ON-OFF, auxiliary power supply and the protocols of communication.

Characteristics

  • 3-wire configuration without neutral
  • Wide input range from 340 to 530 VAC
  • High efficiency up to 97%
  • Forced air cooling
  • Integrated communication protocols such as CANBus, with option for PMBus, MODBus-RTU, RS-485
  • Programmability of the output voltage level and constant current
  • Active power sharing up to 12 units (285KW) and beyond
  • Integrated remote ON-OFF control, auxiliary power supply, alarm signal
  • Integrated protections against short circuit, overload, overvoltage, overheating and fan malfunction.
  • Double insulation for the 55V model
  • 5 year warranty

Applications:

  • Industrial automation
  • U.V. or laser applications
  • Electrolysis systems
  • RF Applications
  • EV Charging Stations

Our vote:

  • Reliability
  • Price
  • Characteristics
    • [[voto1]You haven't provided any Italian text to translate. Please provide the text you want to be translated into English.
    • [[voto2]You haven't provided any Italian text to translate. Please provide the text you want to be translated into English.
    • [[voto3]You haven't provided any Italian text to translate. Please provide the text you want to be translated into English.



Main technical specifications

MODEL SHP-30K-55 SHP-30K-115 SHP-30K-230 SHP-30K-380
DC output voltage 55V 115V 230V 380V
Nominal Output Current 346A 261A 130.5A 79A
Nominal output power 19000W 30000W 30000W 30000W
Efficiency 95% 96% 96.5% 97%
Input voltage 3 Ø 3-wire / 340 ~ 530VAC
Working temperature -30 ~ +70 °C
PFC YES
Dimensions 540*424*83.5mm
Certification CE, CB, EAC
For purchases and sampling CONTACT US

See also:

Download the power supply catalogs in the attachments tab.


Discover more information about

Data sheet
Mean Well
SHP-30K-55
New
Output Regulation Type
Constant Voltage / CV
Output Voltage VDC
55V, 115V, 230V, 380V
Input Voltage VAC
3Ø3W 340-530V
3Ø3W 340-530V
Operating Temperature
-30°C / +70°C
Rating
453
Power W
30000
PFC
Yes
Warranty
5 Years
Mechanical Mounting Format
Boxed - Frame Assembly
Efficiency
95%
96%
97%
Dimensions
460*211*83.5mm
Output Current mA
131000,87000,43500,26300
Output Current A
131,87,43.5,26.3
Input Connector
At Speed
Output Connection
At Speed
Certifications
Sure, but could you please provide the full text that you would like translated?
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
Applications
ITE does not translate to anything in English as it appears to be an abbreviation or acronym. The translation would depend on the context it is used in.
Industrial Automation
Telecommunications
Input Voltage VAC (Nominal)
110
220
Product Family
It seems like "SHP" might be an abbreviation or acronym. Could you provide more context or clarify what "SHP" stands for? That would help in providing an accurate translation.
