UHP-1500  UHP-1500 Alimentatore - Mean Well - Box Metallo -1500W  Mean Well  Alimentatori Automazione
zoom_out_map
chevron_left chevron_right

The product image may slightly differ as it is representative of the family and not the model.

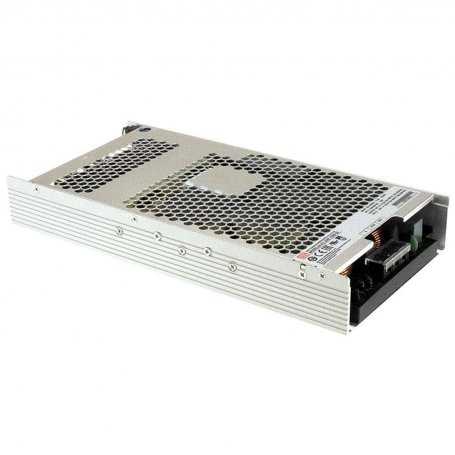

UHP-1500 MeanWell - Metal Box Power Supply 1500W

€532.35 UHP-1500-24
€498.33 UHP-1500-48

€532.35 Tax excluded

€532.35 Tax excluded

error_outline Product available with different options

We will send you an email once the product becomes available. your email address will not be shared with anyone else.

Quantity Unit price Total price Buy
1 €532.35 €532.35
5 €521.70 €2,608.52
10 €511.06 €5,110.56
20 €500.41 €10,008.18
Description

Mean Well Mean Well UHP-1500 series power supply, 1500 Watt power in 24V output voltages

  • Boxed MeanWell Power Supply
  • Constant Voltage CV
  • Input: 90 ~ 264VAC
  • Power: 1500W nominal
  • Compact design and depth of 41mm
  • Self-powered fan cooling
  • Active PFC
  • Protections: Short Circuit / Overheating / Overload / Overvoltage
  • Can operate beyond 5000 meters
  • LED usage indicator
  • Warranty: 5 years
  • Built-in remote On/Off control
  • Optional PMBus or CANBus protocol



Applications:

  • Industrial automation machines
  • Industrial control system
  • Electronic instruments
  • Laser related machine
  • Recharging related equipment
  • Home appliances
  • Electromechanical equipment

Main technical specifications

MODEL UHP-1500-24
Output Voltage 24V
Nominal Output Current 62.5A
Power (Nominal) 1500 Watt
Max Efficiency 95%
Input Voltage VAC 90-264
PFC YES
Dimensions 290 x 140 x 41mm
Data sheet
Mean Well
UHP-1500-24
New
0 Items
0402108705309
Output Regulation Type
Constant Voltage / CV
Output Voltage VDC
24
48
Input Voltage VAC
90~264VAC
90~264VAC
Operating Temperature
-30°C / +70°C
Power W
1500
PFC
Yes
Warranty
5 Years
Mechanical Mounting Format
Boxed - Frame Assembly
Efficiency
95%
Dimensions
290 x 140 x 41mm
Output Current mA
62500
Output Current A
62.5
Input Connector
At Speed
Output Connection
At Speed
Certifications
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
UL
Applications
ITE does not translate to anything in English as it appears to be an abbreviation or acronym. The translation would depend on the context it is used in.
Industrial Automation
Input Voltage VAC (Nominal)
110
220
Product Family
UHP-1500
