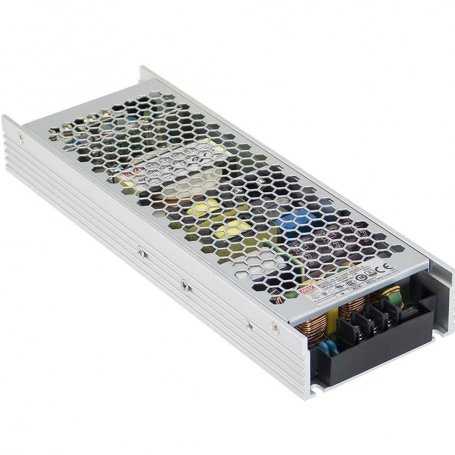

UHP-500 MeanWell Power Supply Box 500W Voltages 4.2V 5V 12V 15V 24V 36V 48V 55V
Description
The UHP-500 series is a 500W enclosed AC/DC power supply with easy installation, it has been specifically designed for applications such as ITE applications, industrial automation.
The UHP-500 series operates with an input voltage of 90-264 VAC, it is especially required for industrial applications and electronic equipment.
Features
- Low and thin profile (31 mm)
- Built-in active PFC function
- Fanless design, 500 W convection
- Resist 300 VAC input surge for 5 seconds
- -30 ~ + 70 ℃ working temperature
- Protections: short circuit, overload, overvoltage, overtemperature
- Active DC OK signal and redundant function (option)
- Operating altitude up to 5000 meters
- LED indicator for power on
- 3 years warranty
- Dimensions: 232x81x31mm
Applications:
- Industrial automation machines
- Industrial control system
- Mechanical and electrical equipment
- Instruments, equipment or electronic devices
- LED display application
- Power equipment for PoE (55V model)
Our rating:
- Reliability
- Price
- Features
-
- ⚡⚡⚡⚡
- ⚡⚡⚡⚡⚡
- ⚡⚡⚡
Mechanical Features
Main technical specifications
| MODEL | UHP-500-4.2 | UHP-500-5 | UHP-500-12 | UHP-500 -15 | UHP-500-24 | UHP-500-36 | UHP-500-48 | UHP-500-55 | |||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DC output voltage | 4.2V | 5V | 12V | 15V | 24V | 36V | 48V | 55V | |||||||||||||||||||||||
| Nominal output current | 80A | 80A | 41.7A | 33.4A | 20.9A | 13.9A | 10.45A | 8.9A | |||||||||||||||||||||||
| Nominal output power | 336W | 400W | 500.4W | 501W | 501.6W | 500.4W | 501.6W | 500W | |||||||||||||||||||||||
| Efficiency | 89% | 90% | 94% | 94% | 94.5% | 95% | 95% | 95% | |||||||||||||||||||||||
| Input current | Cold start 30A/115VAC 60A/230VAC | ||||||||||||||||||||||||||||||
| Input leakage current | |||||||||||||||||||||||||||||||
| AC input current | 4.85A/115VAC 2.6A/230VAC | ||||||||||||||||||||||||||||||
| Input voltage | 90~264VAC | ||||||||||||||||||||||||||||||
| Working temperature | -30 ~ +70 °C | ||||||||||||||||||||||||||||||
| PFC | YES | ||||||||||||||||||||||||||||||
| Dimensions | 232x81x31mm | ||||||||||||||||||||||||||||||
| Certification | CE, CB, EAC, CCC | ||||||||||||||||||||||||||||||
| For purchases and samples | CONTACT US | ||||||||||||||||||||||||||||||
