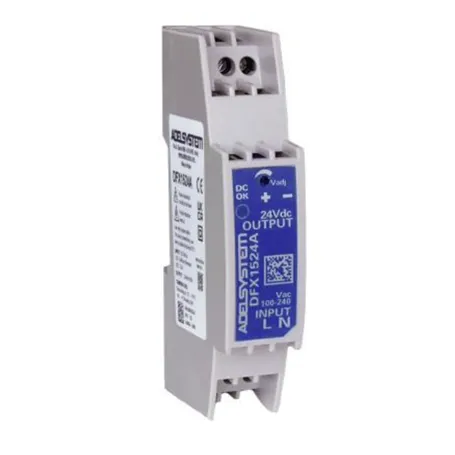

The product image may slightly differ as it is representative of the family and not the model.
DFX1524A Power Supply Adelsystem Din Rail 20W 12V Input 100-277 VAC
Description
- For industrial and residential applications
- Wide input range: 100 – 240 Vac
- Power continuity up to 20 W
- Output: 24 Vdc 0.65A
- Wide temperature range: -25 to 70°C
- Protection against overload,
overvoltage and short circuit - DIN rail and panel mounting
- Extremely small dimensions
- 3 year warranty
The DFX power supplies are capable of delivering current without derating up to +55°C. The power supplies are also equipped with power boost to handle brief current peaks.
The DC output voltage is adjustable via trimmer and the units are equipped with a green LED to indicate the status of the load output voltage.
Technical specifications:
- UNIVERSAL INPUT VOLTAGE 85 – 305 Vac
- ISOLATION VOLTAGE (IN/OUT) 4000 Vac
- PROTECTION CLASS II For building automation applications. Safety grounding is not necessary.
- LOAD OUTPUT VOLTAGE ADJUSTMENT via trimmer
- STARTUP with HIGH CAPACITIVE LOAD 30,000μF
- HICCUP MODE with AUTOMATIC REIGNITION In case of short circuit or overload, the output current is interrupted and the device attempts to re-establish the output voltage and normal conditions about every millisecond until the problem is resolved.
- SERIES CONNECTION up to 4 units
Data sheet
- Insulation Voltage
- 4000
- Output Regulation Type
- Constant Voltage / CV
- Current Protection Type
- Hiccup Mode
- Output Voltage VDC
- 24
- Input Voltage VAC
- 100~277VAC
115~230VAC - Operating Temperature
- -25°C / +70°C
- Rating
- 444
- Power W
- 20
- Output Voltage Nr.
- 1
- Input/Output Isolation
- 4000V
- IP Protection Grade
- IP20
- Warranty
- 3 Years
- Mechanical Mounting Format
- Din Rail
- Efficiency
- 81%
- Dimensions
- 18x90x55mm
- Output Current mA
- 650
- Output Current A
- 0.65
- Input Connector
- At Speed
- Output Connection
- At Speed
- Isolation Class
- Class 2
- Certifications
- RoHS
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details. - Applications
- DIN Panel
ITE does not translate to anything in English as it appears to be an abbreviation or acronym. The translation would depend on the context it is used in.
Industrial Automation - Input Voltage VAC (Nominal)
- 110
220
