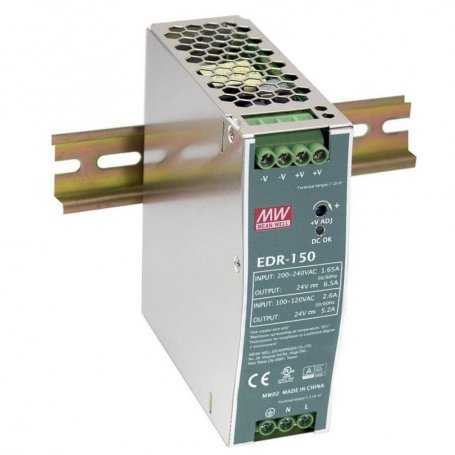

The product image may slightly differ as it is representative of the family and not the model.
EDR-150 MeanWell Din Rail Power Supply 150W Input 90 ~ 264VAC Voltages 24V
Description
The EDR-150 series is a 150W DIN rail power supply with easy installation, specifically designed for applications such as ITE applications, industrial automation.
Features:
- Universal AC / Full range
- Protections: short circuit / overload / overvoltage / overtemperature
- Cooling by free air convection
- Can be installed on DIN rail TS-35 / 7.5 or 15
- Approved UL 508 (industrial control equipment)
- Industrial immunity level EN 61000-6-2 (EN 50082-2)
- 100% full load burn-in test
- 2 years warranty
- Dimensions: 40x125.2x113.5mm
Meanwell EDR-150 Applications:
- Industrial control system
- Semiconductor manufacturing equipment
- Factory automation
- Electromechanical devices
Our rating:
- Reliability
- Price
- Features
-
- ⚡⚡⚡⚡
- ⚡⚡⚡⚡⚡
- ⚡⚡⚡
Mechanical Features
Main technical specifications
| MODEL | EDR-150-24 | |||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DC output voltage | 24V | |||||||||||||||||||||||
| Nominal output current | 6.5A / 230VAC 5.2A / 115VAC | |||||||||||||||||||||||
| Output current range | 0 ~ 6.5A / 230VAC 0 ~ 5.2A / 115VAC | |||||||||||||||||||||||
| Nominal output power | 156W / 230VAC 125W / 115VAC | |||||||||||||||||||||||
| Working temperature | -20 ~ +60 °C | |||||||||||||||||||||||
| Efficiency | 87% | |||||||||||||||||||||||
| Input voltage | 90 ~ 264VAC | |||||||||||||||||||||||
| PFC | NO | |||||||||||||||||||||||
| Dimensions | 40x125.2x113.5mm | |||||||||||||||||||||||
| Certification | CE, CB, EAC | |||||||||||||||||||||||
| For purchases and samples | CONTACT US | |||||||||||||||||||||||
See also:
Download the Din Rail power supply catalogs in the attachments tab.
Data sheet
- Output Regulation Type
- Constant Voltage / CV
- Output Voltage VDC
- 24
- Input Voltage VAC
- 90 ~ 264VAC
90 ~ 264VAC - Operating Temperature
- -4°F / +140°F
- Rating
- 453
- Power W
- 150
- PFC
- No
- Warranty
- 2 Years
- Mechanical Mounting Format
- Din Rail
- Efficiency
- 87%
- Dimensions
- 40x125.2x113.5mm
- Output Current mA
- 5200
6500 - Output Current A
- 5.2
6.5 - Output Connection
- At Speed
- Certifications
- Sure, but could you please provide the full text that you would like translated?
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
UL - Applications
- DIN Panel
ITE does not translate to anything in English as it appears to be an abbreviation or acronym. The translation would depend on the context it is used in.
Industrial Automation - Input Voltage VAC (Nominal)
- 110
220 - Product Family
- EDR-150
Questions(FAQs)
The NDR series is slightly more refined, so it has some advantages over the EDR series, including:
- greater efficiency
- wider operating temperature range
- some mechanical components are metallic instead of plastic
- longer expected life
