The product image may slightly differ as it is representative of the family and not the model.

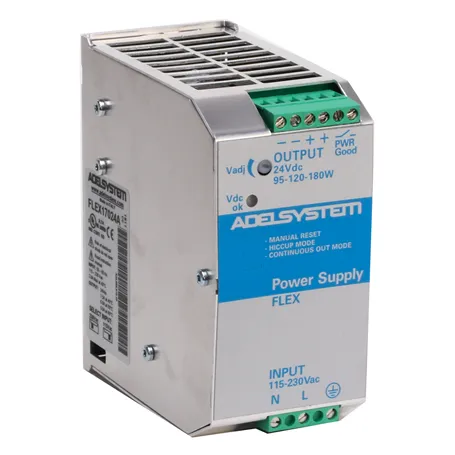

FLEX17024A Power Supply Adelsystem Din Rail 180W 24V Input 110/220 VAC
Description
- Slim Din-Rail Power Supply Adelsystem
- Constant Voltage CV
- Single Phase Input: 115~230VAC
- Power: 180W
- Output: 24Vdc 7.5A
- Three selectable overload protection modes:
- Hiccup Mode
- Fold Back
- Restart after Main
- DIN Rail Mounting
- Very thin
- Warranty: 3 years
Data sheet
- Output Regulation Type
- Constant Voltage / CV
- Output Voltage VDC
- 24
- Input Voltage VAC
- 115~230VAC
115~230VAC - Rating
- 444
- Power W
- 180
- PFC
- Yes
- Output Voltage Nr.
- 1
- IP Protection Grade
- It appears that "IP00" does not contain any text to translate. Could you please provide the text you would like translated from Italian to English?
- Warranty
- 1 Year
- Mechanical Mounting Format
- Din Rail
- Efficiency
- 92%
- Dimensions
- 55 x 110 x 105 mm
- Output Current mA
- 7500
- Output Current A
- 7.5
- Input Connector
- At Speed
- Output Connection
- At Speed
- Isolation Class
- Class 1
- Certifications
- This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
- Applications
- DIN Panel
ITE does not translate to anything in English as it appears to be an abbreviation or acronym. The translation would depend on the context it is used in.
Industrial Automation - Input Voltage VAC (Nominal)
- 110
220 - Product Family
- FLEX
- LTT is an abbreviation or acronym that may not have a direct translation without context. It may stand for a company name, a tec
- 1
- MKP
- YES
- TK-CODE
- 20/1. [0.0.NO.75]/LTT-1
- List Price
- 73.5
