HDR-30 HDR-30 Alimentatore DIN RAIL Mean Well 30W Mean Well Alimentatori Guida DIN
zoom_out_map
chevron_left chevron_right

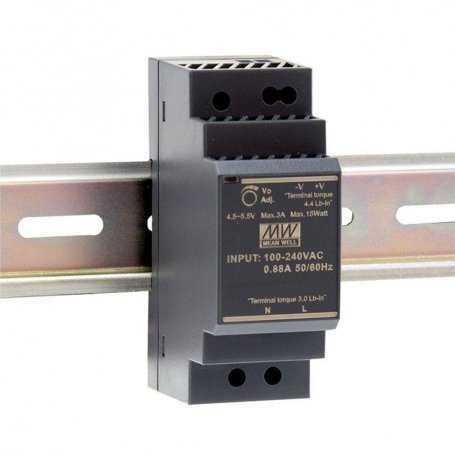

The product image may slightly differ as it is representative of the family and not the model.

HDR-30 MeanWell - DIN rail power supply 30W - Voltages 5V, 12V, 15V, 24V, 48V

€16.87 HDR-30-5
€15.68 HDR-30-12
€17.50 HDR-30-15
€15.68 HDR-30-24
€17.50 HDR-30-48

€16.87 Tax excluded

€16.87 Tax excluded

check Available

Order it before 53 minutes and receive it 11/26/24 with TNT Express

Quantity Unit price Total price Buy
1 €16.87 €16.87
5 €16.53 €82.66
10 €16.20 €161.95
20 €15.86 €317.16
Description

The DIN RAIL power supplies Mean Well of the HDR-30 series are entry-level products, with a 3-year warranty, developed for mounting in electrical panels via DIN rail.

Main features of 30W DIN rail power supply:

  • Economical and reliable
  • Ultra slim 35mm thick design (2SU)
  • Can be installed on DIN TS-35/7.5 or 15 rail
  • Practical terminal blocks for input (below) and output (above).
  • Safe: equipped with protections from overvoltage, short-circuit, and overload
  • Class 2 insulation (without ground)
  • Perfect for installation in industrial machines and electrical panels
  • Quiet: No fans
  • 3-year warranty
  • Efficiency up to 90%
  • No-load consumption
  • Input: 85-264VAC
  • Certifications: UL, CE
  • Dimensions: 35x90x54.5mm

MeanWell HDR-30 Applications:

  • Home automation
  • Building automation
  • Power supply for video cameras
  • Industrial automation
  • Electro-mechanical automation
  • Control panels for elevators

Our rating:

  • Reliability
  • Price
  • Features
  • ⚡⚡⚡⚡
  • ⚡⚡⚡⚡⚡
  • ⚡⚡⚡

Main technical specifications

MODEL HDR-30-5 HDR-30-12 HDR-30-15 HDR-30-24 HDR-30-48
Output voltage  5V 12V  15V 24V 48V
Nominal output current  3A 2A 2A 1.5A 0.75A
Power (Nominal) 30 Watt
Dimmable NO
Max Efficiency  82% 88% 89% 89% 90%
Input Voltage VAC 85-264VAC
PFC NO
Dimensions 35x90x54.5mm


Also see:

Download the Din Rail power supply catalogs in the attachments tab.

Attachments

HDR-30 Certificato CE

CERTIFICATO CE

file_download Download (90.45KB)

HDR-30 Certificato UL

CERTIFICATO UL

file_download Download (20.81KB)

HDR-30 Datasheet V2

HDR-30 Datasheet V2

file_download Download (198.16KB)

Data sheet
Mean Well
HDR-30-5
New
330 Items
4021087036597
Output Regulation Type
Constant Voltage / CV
Output Voltage VDC
5
12
15
24
48
Input Voltage VAC
85~264VAC
85~264VAC
Operating Temperature
-30°C / +70°C
Rating
453
Power W
30
PFC
No
Warranty
3 Years
Mechanical Mounting Format
Din Rail
Efficiency
90%
Dimensions
35x90x54.5mm
Output Current mA
750
1500
2000
3000
Output Current A
0.75
1.5
2
3
Input Connector
At Speed
Output Connection
At Speed
Isolation Class
Class 2
Certifications
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
UL
Applications
DIN Panel
ITE does not translate to anything in English as it appears to be an abbreviation or acronym. The translation would depend on the context it is used in.
Industrial Automation
Input Voltage VAC (Nominal)
110
220
Product Family
HDR-30
TK-CODE
40/0. [108.50.NO.]/LTT-3
82/7. [145.50.SI.]/LTT-1
91/4. [293.50.NO.]/LTT-1
97/29. [119.50.SI.]/LTT-1
740/43. [2636.50.SI.]/LTT-1
