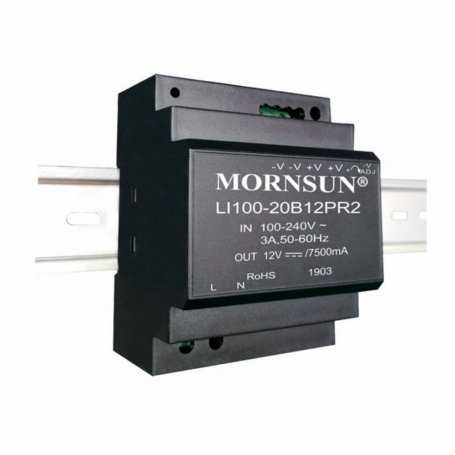

The product image may slightly differ as it is representative of the family and not the model.
LI100-20B - AC/DC Power Supply Mornsun Din Rail - 100W - Voltages 12V 15V 24V 48V
Description
The Din Rail AC DC Mornsun of the LI100-20B series is an entry level product, it has a single 100W output, with an input voltage (85-264VAC or 120-370VDC), with output voltages 12V 15V 24V 48V
The LI100-20B series has been specially designed for applications such as: machinery for industrial control equipment and all types of applications in a harsh environment
Features:
- High efficiency up to 90%
- Universal input voltage 85-264VAC or 120-370VDC
- Accepts AC or DC input (dual use of the same terminal)
- Operating ambient temperature range: from -40 ° C to + 70 ° C
- High I / O insulation test voltage up to 4000 VAC
- Industrial product technology design
- Overvoltage class III (designed to meet EN61558 standards)
- Low standby power consumption, high efficiency
- Reduced ripple and noise
- Protection from output short circuit, overcurrent and overvoltage
- Resistant to input spikes of 300 VAC for 5 seconds
- UL / EN / IEC62368 safety approval
- Mountable on DIN TS35X7.5 / TS35X15 rail
- Dimensions: 70x92.66x58mm
Applications:
- Industrial control devices
- Elevator control panels
Our rating:
- Reliability
- Price
- Features
- ⚡⚡⚡⚡
- ⚡⚡⚡⚡⚡
- ⚡⚡⚡
Main technical specifications
| MODEL | LI100-20B12PR2 | LI100-20B15PR2 | LI100-20B24PR2 | LI100-20B48PR2 | ||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Output power (W) | 90 | 97.5 | 100.8 | 100.8 | ||||||||||||||||||||||||
|
Nominal output voltage and current (Vo / Io) |
12V/7.5A | 15V/6.5A | 24V/4.2A | 48V/2.1A | ||||||||||||||||||||||||
|
Adjustable output voltage range (V)* |
12.0 - 13.8 | 13.5 - 18.0 | 21.6 - 29.0 | 43.2 - 55.2 | ||||||||||||||||||||||||
| Efficiency at 230VAC (%) Typ |
88 | 89 | 90 | 90 | ||||||||||||||||||||||||
|
Capacitive load |
10000 | 6400 | 2500 | 1100 | ||||||||||||||||||||||||
|
Dimensions |
70x92.66x58mm | 70x92.66x58mm | 70x92.66x58mm | 70x92.66x58mm | ||||||||||||||||||||||||
|
PFC |
No | No | No | No | ||||||||||||||||||||||||
| Certification | UL/CE/CB | UL/CE/CB | UL/CE/CB | UL/CE/CB | ||||||||||||||||||||||||
| For purchases and samples | CONTACT US | |||||||||||||||||||||||||||
Note: * The actual adjustment range may extend beyond the stated values, it is necessary to pay attention to ensure that the output voltage and power levels remain within the published maximum values.
Data sheet
- Output Regulation Type
- Constant Voltage / CV
- Output Voltage VDC
- 12
15
24
48 - Input Voltage VAC
- 85~264VAC
85~264VAC - Operating Temperature
- -40°C / +70°C
- Rating
- 453
- Power W
- 100
- PFC
- No
- Mechanical Mounting Format
- Din Rail
- Efficiency
- 90%
- Dimensions
- 70x92.66x58mm
- Output Current A
- 2.1
4.2
6.5
7.5 - Certifications
- Sure, but could you please provide the full text that you would like translated?
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
UL - Applications
- DIN Panel
Industrial Automation - Input Voltage VAC (Nominal)
- 110
220 - Product Family
- LI100-20B
