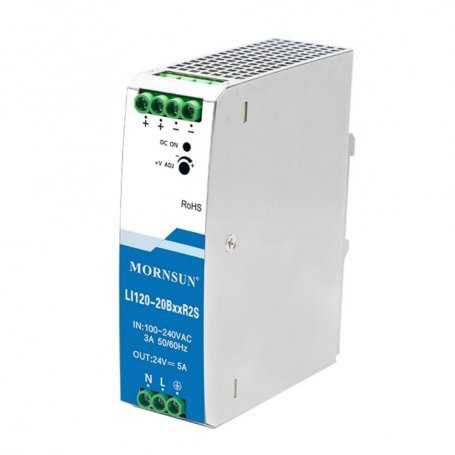

The product image may slightly differ as it is representative of the family and not the model.
LI120-20BxxR2S - AC/DC Power Supply Mornsun Din Rail - 120W - Voltages 12V 24V 48V
Description
The Din Rail AC DC Mornsun from the LI120-20BxxR2S series is an entry level product, it has a single 120W output, with an input voltage (90 - 264VAC or 127 - 373VDC), with output voltages 12V 24V 48V
The LI120-20BxxR2S series has been specifically designed for applications such as: industrial control equipment machinery and all types of applications in a harsh environment
Features:
- Universal input voltage 90 - 264 V AC or 127 - 373 V DC
- Accepts AC or DC input (double use of the same terminal)
- Ambient temperature operating range: from -20 ℃ to + 60 ℃
- High isolation test voltage I / O up to 4000 V AC.
- Reduced ripple and noise
- Protection from output short circuit, overcurrent, overvoltage, overtemperature
- Mountable on DIN TS-35 / 7.5 or 15 rail
- Ultra-thin design with a width of 36 mm: suitable for small chassis and installations in confined spaces
- Safety according to UL61010, UL508, EN62368
- Dimensions: 36x125x100mm
Applications:
- Industrial control devices
- Lift control panels
Our rating:
- Reliability
- Price
- Features
- ⚡⚡⚡⚡
- ⚡⚡⚡⚡⚡
- ⚡⚡⚡
Main technical specifications
| MODEL | LI120-20B12R2S | LI120-20B24R2S | LI120-20B48R2S | ||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Output power (W) | 120 | 120 | 120 | ||||||||||||||||||||||||
|
Nominal output voltage and current (Vo / Io) |
12V/10A | 24V/5A | 48V/2.5A | ||||||||||||||||||||||||
|
Adjustable output voltage range (V)* |
12-14 | 24-28 | 48-55 | ||||||||||||||||||||||||
| Efficiency at 230VAC (%) Typ |
85 | 88 | 89 | ||||||||||||||||||||||||
|
Capacitive load |
3000 | 1200 | 800 | ||||||||||||||||||||||||
|
Dimensions |
36x125x100mm | 36x125x100mm | 36x125x100mm | ||||||||||||||||||||||||
|
PFC |
NO | NO | NO | ||||||||||||||||||||||||
| Certification | CE | CE | CE | ||||||||||||||||||||||||
| For purchases and samples | CONTACT US | ||||||||||||||||||||||||||
Data sheet
- Output Regulation Type
- Constant Voltage / CV
- Output Voltage VDC
- 12
24
48 - Input Voltage VAC
- 90~264VAC
90~264VAC - Operating Temperature
- -4°F / +140°F
- Rating
- 453
- Power W
- 120
- PFC
- No
- Mechanical Mounting Format
- Din Rail
- Efficiency
- 89%
- Dimensions
- 36x125x100mm
- Output Current A
- 2.5
5
10 - Certifications
- This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
- Applications
- DIN Panel
Industrial Automation - Input Voltage VAC (Nominal)
- 110
220 - Product Family
- LI120-20BxxR2S
