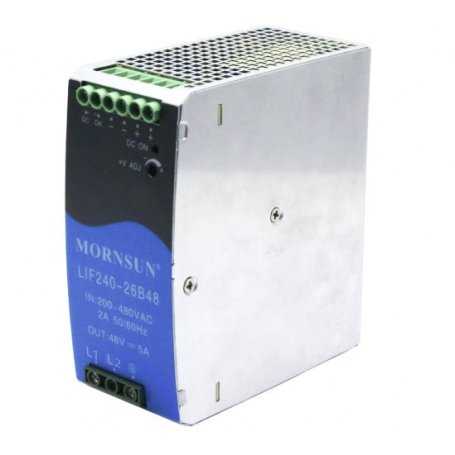

The product image may slightly differ as it is representative of the family and not the model.
LIF240-26Bxx - AC/DC Power Supply Mornsun Din Rail - 240W - Voltages 24V 48V
Description
Available models: LIF240-26B24, LIF240-26B48
The LIF240-26Bxx series from Mornsun offers cost-effective AC/DC converters, perfect for DIN rail solutions that require high efficiency.
The products offer a high level of stability as well as noise protection in industrial, mechanical installations, or in other harsh environmental situations. The casing is extremely compact, allowing for easy space-saving installation. With excellent EMC performance, it complies with the UL/EN/BS EN62368, UL61010, UL508, UL62477, UL60664, GB4943 standards.
Features:
- Universal input voltage 180 - 550 VAC or 254 - 780 VDC
- Ambient temperature operating range: from -40 ℃ to + 70 ℃
- High I / O insulation test voltage up to 4000 VAC.
- Power at 150% for 5 seconds
- Integrated active PFC
- OVC III, altitude at 2000m
- Reduced ripple and noise
- Protection from output short circuit, overcurrent, overvoltage, over temperature, constant current limit
- Ultra-thin design with a width of 41 mm: suitable for small chassis and installations in tight spaces
- Safety according to UL/EN/BS EN62368, UL61010, UL508, UL62477, UL60664, GB4943.
- Dimensions: 124x54x110 mm
Applications:
- Industrial control devices
- DC EV charging
- Single-phase or two-phase applications
Our rating:
- Reliability
- Price
- Features
- ⚡⚡⚡⚡
- ⚡⚡⚡⚡⚡
- ⚡⚡⚡
Main technical specifications
| MODEL | LIF240-26B24 | LIF240-26B48 |
|---|---|---|
| Output power (W) | 240 | 240 |
|
Rated output voltage and current (Vo / Io) |
24V/10A | 48V/5A |
|
Adjustable output voltage range (V)* |
24-28 | 48-55 |
| Efficiency at 230VAC (%) Typ |
91 | 91 |
|
Capacitive load |
10000 | 10000 |
|
Dimensions |
124x54x110 mm | 124x54x110 mm |
|
PFC |
YES | YES |
| Certification | CE | CE |
| For purchases and samples | CONTACT US | |
Data sheet
- Output Regulation Type
- Constant Voltage / CV
- Output Voltage VDC
- 24
48 - Input Voltage VAC
- 180-550 VAC
180-550 VAC - Operating Temperature
- -40°C / +70°C
- Rating
- 453
- Power W
- 240
- PFC
- Yes
- Mechanical Mounting Format
- Din Rail
- Efficiency
- 91%
- Dimensions
- 124x54x110 mm
- Output Current A
- 5
10 - Certifications
- This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
- Applications
- DIN Panel
Industrial Automation - Input Voltage VAC (Nominal)
- 110
220
