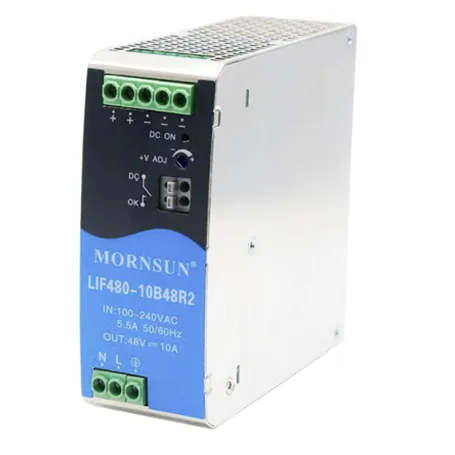

The product image may slightly differ as it is representative of the family and not the model.
LIF480-10B-R2 - AC/DC Power Supply Mornsun Din Rail - 480W - Voltages 24V 48V
Available models: LIF480-10B24R2, LIF480-10B48R2
LIF480-10BxxR2 is a series of AC-DC converters from Mornsun that offer an efficient green power solution cost-effectively for standard DIN rail mounting. These products ensure a high level of stability and noise immunity for industrial control equipment, machinery, and other industrial equipment in various challenging environments. These lightweight AC-DC converters feature an extremely compact design and allow standard rail mounting to save space. Thanks to their good EMC performance, they comply with international IEC/EN/UL/BS EN 62368 and UL61010 standards regarding EMC and safety.
Features:
- Universal input voltage from 85 to 264VAC or from 120 to 370VDC
- Accepts AC or DC input (dual use of the same terminal)
- Operating ambient temperature range: from -40°C to +70°C
- High efficiency, high reliability
- DC OK function
- Built-in active PFC function
- LED indicator for power on
- Protection against output short circuit, overcurrent, overvoltage, and overtemperature
- Compliance with IEC/UL/BS EN 62368 safety requirements
- Operating altitude up to 5000 meters
- Overvoltage category OVC Ⅱ
- Indoor use
Applications:
- Industrial control devices
- DC EV charging
- Single-phase or two-phase applications
Our rating:
- Reliability
- Price
- Features
- ⚡⚡⚡⚡
- ⚡⚡⚡⚡⚡
- ⚡⚡⚡
Main technical specifications
| MODEL | LIF480-10B24R2 | LIF480-10B48R2 |
|---|---|---|
| Output power (W) | 480 | 480 |
|
Nominal output voltage and current (Vo / Io) |
24V/20A | 48V/10A |
|
Adjustable output voltage range (V)* |
24-28 | 48-55 |
| Efficiency at 230VAC (%) Typ |
94.5 | |
|
Capacitive load |
20000 | 10000 |
|
Dimensions |
131.5x48x125 mm | |
|
PFC |
YES | |
| Certification | CE | |
| For purchases and samples | CONTACT US | |
- Output Regulation Type
- Constant Voltage / CV
- Output Voltage VDC
- 24
48 - Input Voltage VAC
- 85~264VAC
85~264VAC - Operating Temperature
- -40°C / +70°C
- Rating
- 453
- Power W
- 480
- PFC
- Yes
- Mechanical Mounting Format
- Din Rail
- Efficiency
- 92%
94% - Dimensions
- 124x41x110 mm
- Output Current A
- 10
20 - Certifications
- This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
- Applications
- DIN Panel
Industrial Automation - Input Voltage VAC (Nominal)
- 110
220
