The product image may slightly differ as it is representative of the family and not the model.
SDR-120 MeanWell Din Rail Power Supply 120W Input 88 ~ 264VAC Voltages 12V 24V 48V
Description
Power supply Mean Well SDR-120 series, power 120Watt, output voltages 12V, 24V, 48V
Mean Well DIN rail power supply SDR-120
The SDR-120 series is a 120 W power supply on a DIN rail with easy installation, specifically designed for applications such as ITE applications, industrial automation.
Features:
- High efficiency 91% and low power dissipation
- 150% peak load capacity
- Protections: short circuit / overload / overvoltage / overtemperature
- Free air convection cooling
- Installable on DIN rail TS-35 / 7.5 or 15
- UL 508 approved (industrial control equipment)
- Industrial immunity level EN 61000-6-2 (EN 50082-2)
- 100% full load burn-in test
- 3 years warranty
- Dimensions 40x125.2x113.5mm
Applications:
- Industrial automation
Our rating:
- Reliability
- Price
- Features
-
- ⚡⚡⚡⚡
- ⚡⚡⚡⚡⚡
- ⚡⚡⚡

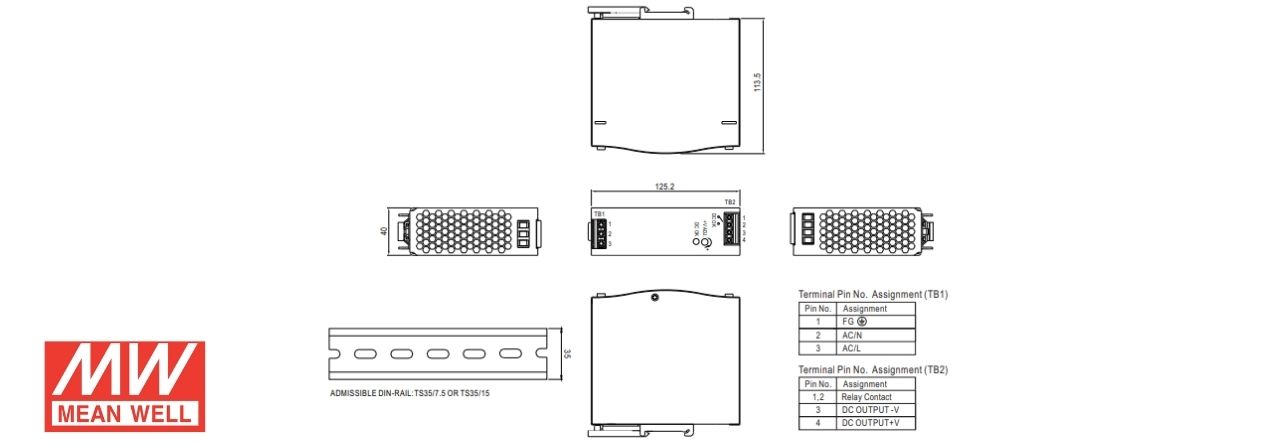

Mechanical Characteristics
Key Technical Specifications
| MODEL | SDR-120-12 | SDR-120-24 | SDR-120-48 | |||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DC output voltage | 12V | 24V | 48V | |||||||||||||||||||||||
| Nominal output current | 10A | 5A | 2.5A | |||||||||||||||||||||||
| Output current range | 0 ~ 10A | 0 ~ 5A | 0 ~ 2.5A | |||||||||||||||||||||||
| Nominal output power | 120W | 120W | 120W | |||||||||||||||||||||||
| Operating temperature | -25 ~ +70 | |||||||||||||||||||||||||
| Efficiency | 89% | 91% | 90.5% | |||||||||||||||||||||||
| Input voltage | 88 ~ 264VAC | |||||||||||||||||||||||||
| PFC | NO | |||||||||||||||||||||||||
| Dimensions | 40x125.2x113.5mm | |||||||||||||||||||||||||
| Certification | CE, CB, EAC | |||||||||||||||||||||||||
| For purchases and samples | CONTACT US | |||||||||||||||||||||||||
See also:
Download the Din Rail power supplies catalogs in the attachments tab.
Data sheet
- Output Regulation Type
- Constant Voltage / CV
- Output Voltage VDC
- 12
24
48 - Input Voltage VAC
- 88 ~ 264VAC
88 ~ 264VAC - Operating Temperature
- -25°C / +70°C
- Rating
- 453
- Power W
- 120
- PFC
- No
- Warranty
- 3 Years
- Mechanical Mounting Format
- Din Rail
- Efficiency
- 91%
- Dimensions
- 40x125.2x113.5mm
- Output Current mA
- 2500
5000
10000 - Output Current A
- 2.5
5
10 - Output Connection
- At Speed
- Certifications
- Sure, but could you please provide the full text that you would like translated?
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
UL - Applications
- DIN Panel
ITE does not translate to anything in English as it appears to be an abbreviation or acronym. The translation would depend on the context it is used in.
Industrial Automation - Input Voltage VAC (Nominal)
- 110
220 - Product Family
