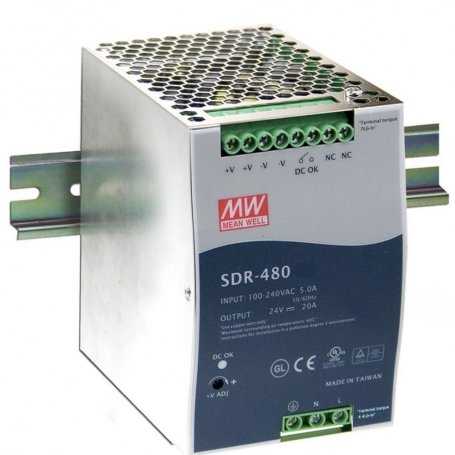

The product image may slightly differ as it is representative of the family and not the model.
SDR-480 MeanWell Din Rail Power Supply 480W Input 90 ~ 264VAC Voltages 24V 48V
Description
Power supply Mean Well series SDR-480, power 480Watt, output voltages 24V, 48V
The SDR-480 series is a power supply on a DIN rail of 480 W with easy installation, specifically designed for applications such as ITE applications, industrial automation.
Features:
- High efficiency 94% and low power dissipation
- Peak load capacity of 150%
- Built-in active PFC function, PF> 0.94
- Protections: short circuit / overload / overvoltage / overtemperature
- Free air convection cooling
- Can be installed on DIN TS-35 / 7.5 or 15 rail
- UL 508 approved (industrial control equipment)
- Industrial immunity level EN 61000-6-2 (EN 50082-2)
- 100% full load burn-in test
- 3 years warranty
- Dimensions: 85.5x125.2x128.5mm
Applications:
- Industrial automation
- ITE applications
Our rating:
- Reliability
- Price
- Features
-
- ⚡⚡⚡⚡
- ⚡⚡⚡⚡⚡
- ⚡⚡⚡
Mechanical Features
Main technical specifications
| MODEL | SDR-480-24 | SDR-480-48 | |||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DC output voltage | 24V | 48V | |||||||||||||||||||||||
| Nominal output current | 20A | 10A | |||||||||||||||||||||||
| Output current range | 0 ~ 20A | 0 ~ 10A | |||||||||||||||||||||||
| Nominal output power | 480W | 480W | |||||||||||||||||||||||
| Working temperature | -25 ~ +70 | ||||||||||||||||||||||||
| Efficiency | 94% | 94% | |||||||||||||||||||||||
| Input voltage | 90 ~ 264VAC | ||||||||||||||||||||||||
| PFC | YES | ||||||||||||||||||||||||
| Dimensions | 85.5x125.2x128.5mm | ||||||||||||||||||||||||
| Certification | CE, CB, EAC | ||||||||||||||||||||||||
| For purchases and samples | CONTACT US | ||||||||||||||||||||||||
See also:
Download the Din Rail power supply catalogs in the attachments tab.
Data sheet
- Output Regulation Type
- Constant Voltage / CV
- Output Voltage VDC
- 24
48 - Input Voltage VAC
- 90 ~ 264VAC
90 ~ 264VAC - Operating Temperature
- -25°C / +70°C
- Rating
- 453
- Power W
- 480
- PFC
- YES
- Warranty
- 3 Years
- Mechanical Mounting Format
- Din Rail
- Efficiency
- 94%
- Dimensions
- 85.5x125.2x128.5mm
- Output Current mA
- 10000
20000 - Output Current A
- 10
20 - Output Connection
- At Speed
- Certifications
- Sure, but could you please provide the full text that you would like translated?
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
UL - Applications
- DIN Panel
ITE does not translate to anything in English as it appears to be an abbreviation or acronym. The translation would depend on the context it is used in.
Industrial Automation - Input Voltage VAC (Nominal)
- 110
220 - Product Family
