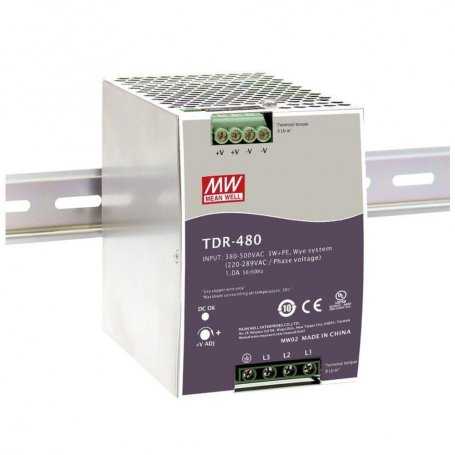

The product image may slightly differ as it is representative of the family and not the model.
TDR-480 MeanWell - DIN rail power supply 480W Voltage 24V 48V
Description
The DIN RAIL power supplies by Mean Well from the TDR-480 series are entry-level products, with a 3-year warranty, and are developed for mounting in an electrical panel via DIN TS-35/7.5 or TS-35/15 rail.
Main features:
- Economical and reliable
- Slim design 85.5mm wide
- Can be installed on DIN TS-35/7.5 or 15 rail
- Practical terminal blocks for input (below) and output (above).
- Safe: equipped with protections from overvoltage, short-circuit and overload
- Perfect for installation in industrial machines and electrical panels
- Quiet: No fans
- 3-year warranty
- Efficiency up to 93%
- Input: Three-phase 340 ~ 550VAC (Two-phase possible) 480 ~ 780VDC
- Certifications: UL, CE
- Dimensions: 85.5 x 125.2 x 128.5mm
Applications:
- Industrial control system
- Semiconductor manufacturing equipment
- Industrial automation
- Electromechanical equipment
Our rating:
- Reliability
- Price
- Features
- ⚡⚡⚡⚡
- ⚡⚡⚡⚡⚡
- ⚡⚡⚡
Main technical specifications
| MODEL | TDR-480-24 | TDR-480-48 |
|---|---|---|
| Output Voltage | 24V | 48V |
| Nominal Output Current | 20A | 10A |
| Power (Nominal) | 480 Watt | 480 Watt |
| Max Efficiency | 93% | 93% |
| Input Voltage VAC | Three-phase 340 ~ 550VAC (Two-phase possible) 480 ~ 780VDC | |
| PFC | YES | YES |
| Dimensions | 85.5 x 125.2 x 128.5mm | |
See also:
Download the Din Rail power supplies catalogs in the attachments tab.
Data sheet
- Output Regulation Type
- Constant Current / CC
- Output Voltage VDC
- 24
48 - Input Voltage VAC
- 340~550VAC 3-Phase
340~550VAC 3-Phase - Operating Temperature
- -30°C / +70°C
- Rating
- 453
- Power W
- 480
- PFC
- Yes
- Warranty
- 3 Years
- Mechanical Mounting Format
- Din Rail
- Efficiency
- 93%
- Dimensions
- 85.5 x 125.2 x 128.5mm
- Output Current mA
- 10000
20000 - Output Current A
- 10
20 - Input Connector
- At Speed
- Output Connection
- At Speed
- Certifications
- This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
UL - Applications
- DIN Panel
ITE does not translate to anything in English as it appears to be an abbreviation or acronym. The translation would depend on the context it is used in.
Industrial Automation
Security - Product Family
- TDR-480
