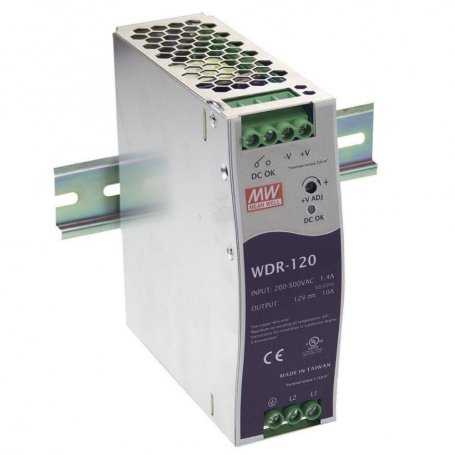

The product image may slightly differ as it is representative of the family and not the model.
WDR-120 MeanWell Din Rail Power Supply 120W Voltages 12V 24V 48V
Description
Power supply Mean Well series WDR-120, power 120Watt, output voltages 12V, 24V, 48V
Mean Well DIN rail power supply WDR-120
The WDR-120 series is a 120W power supply on DIN rail with easy installation, specifically designed for applications such as ITE applications, industrial automation.
Features
- Wide range of single-phase and two-phase input 180 ~ 550 VAC
- Protections: short circuit, overload, overvoltage, overtemperature
- Free air convection cooling
- Built-in constant current limiting circuit
- Can be installed on DIN rail TS-35 / 7.5 or 15
- UL508 approved (industrial control equipment)
- Industrial immunity level EN 61000-6-2 (EN 50082-2)
- 100% full load burn-in test
- Integrated DC OK relay contact
- 3 year warranty
- Dimensions: 40x125.2x113.5mm
Applications:
- Industrial control system
- Semiconductor manufacturing equipment
- Factory automation
- Electromechanical appliances
Our rating:
- Reliability
- Price
- Features
-
- ⚡⚡⚡⚡
- ⚡⚡⚡⚡⚡
- ⚡⚡⚡
Mechanical Features
Main technical specifications
| MODEL | WDR-120-12 | WDR-120-24 | WDR-120-48 | |||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DC output voltage | 12V | 24V | 48V | |||||||||||||||||||||||
| Nominal output current | 10A | 5A | 2.5A | |||||||||||||||||||||||
| Output current range | 0 ~ 10A | 0 ~ 5A | 0 ~2.5A | |||||||||||||||||||||||
| Rated output power | 120W | 120W | 120W | |||||||||||||||||||||||
| Input current | Cold start 50A | |||||||||||||||||||||||||
| AC input current | 0.7A/400VAC 1.2A/230VAC | |||||||||||||||||||||||||
| Input leakage current | ||||||||||||||||||||||||||
| Operating temperature | -25 ~ +70℃ | |||||||||||||||||||||||||
| Efficiency | 89.5% / 400V | 91% / 400V | 92% / 400V | |||||||||||||||||||||||
| Input voltage | 180 ~ 550VAC | |||||||||||||||||||||||||
| PFC | NO | |||||||||||||||||||||||||
| Dimensions | 40x125.2x113.5mm | |||||||||||||||||||||||||
| Certification | CE, EAC, UL, CB | |||||||||||||||||||||||||
| For purchases and samples | CONTACT US | |||||||||||||||||||||||||
See also:
- AC-DC Power Supplies
- DIN Rail Power Supplies
Download the Din rail power supply catalogs in the attachments tab.
Discover more information about
Data sheet
- Output Regulation Type
- Constant Voltage / CV
- Output Voltage VDC
- 12
24
48 - Input Voltage VAC
- 190 ~ 550VAC
190 ~ 550VAC - Operating Temperature
- -25°C / +70°C
- Rating
- 453
- Power W
- 120
- PFC
- No
- Warranty
- 3 Years
- Mechanical Mounting Format
- Din Rail
- Efficiency
- 92%
- Dimensions
- 40x125.2x113.5mm
- Output Current mA
- 2500
5000
10000 - Output Current A
- 2.5
5
10 - Output Connection
- At Speed
- Certifications
- Sure, but could you please provide the full text that you would like translated?
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
UL - Applications
- DIN Panel
ITE does not translate to anything in English as it appears to be an abbreviation or acronym. The translation would depend on the context it is used in.
Industrial Automation - Input Voltage VAC (Nominal)
- 220
380
480 - Product Family
