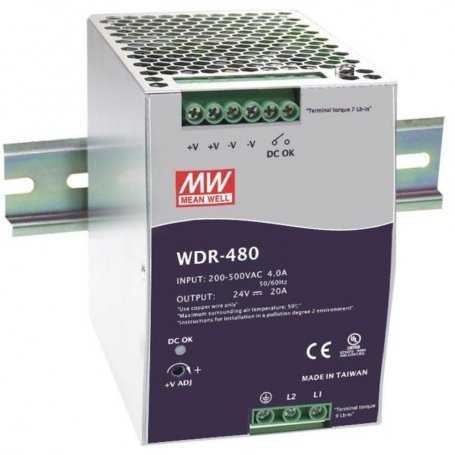

The product image may slightly differ as it is representative of the family and not the model.
WDR-480 MeanWell Din Rail Power Supply 480W Voltages 24V 48V
Description
Power supply Mean Well series WDR-480, power 480Watt, output voltages 24V, 48V
Mean Well DIN rail power supply WDR-480
The WDR-480 series is a power supply on DIN rail of 480W with easy installation, it has been specifically for applications such as ITE applications, industrial automation.
Features
- Wide range of single-phase and two-phase input 180~550 VAC
- Compliance of the integrated active PFC circuit with EN61000-3-2
- High efficiency 93% and low power dissipation
- Protections: short circuit, overload, overvoltage, overtemperature
- Cooling by free air convection
- Built-in constant current limiting circuit
- Can be installed on DIN rail TS-35 / 7.5 or 15
- Approved UL508 (industrial control equipment)
- Industrial immunity level EN 61000-6-2 (EN 50082-2)
- 100% full load burn-in test
- Built-in DC OK relay contact
- 3 years warranty
- Dimensions: 85.5x125.2x128.5mm
Applications:
- Industrial control system
- Semiconductor manufacturing equipment
- Factory automation
- Electromechanical devices
Our rating:
- Reliability
- Price
- Features
-
- ⚡⚡⚡⚡
- ⚡⚡⚡⚡⚡
- ⚡⚡⚡
Mechanical Features
Main technical specifications
| MODEL | WDR-480-24 | WDR-480-48 | |||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DC output voltage | 24V | 48V | |||||||||||||||||||||||
| Nominal output current | 20A | 10A | |||||||||||||||||||||||
| Output current range | 0 ~ 20A | 0 ~ 10A | |||||||||||||||||||||||
| Nominal output power | 480W | 480W | |||||||||||||||||||||||
| Input current | Cold start 50A | ||||||||||||||||||||||||
| AC input current | 1.6A/400VAC 4A/230VAC | ||||||||||||||||||||||||
| Input leakage current | |||||||||||||||||||||||||
| Working temperature | -30 ~ +70℃ | ||||||||||||||||||||||||
| Efficiency | 92% | 93% | |||||||||||||||||||||||
| Input voltage | 180 ~ 550VAC | ||||||||||||||||||||||||
| PFC | YES | ||||||||||||||||||||||||
| Dimensions | 85.5x125.2x128.5mm | ||||||||||||||||||||||||
| Certification | CE, EAC, UL, CB | ||||||||||||||||||||||||
| For purchases and samples | CONTACT US | ||||||||||||||||||||||||
See also:
Download the DIN Rail Power Supply Catalogs in the attachments tab.
Data sheet
- Output Regulation Type
- Constant Voltage / CV
- Output Voltage VDC
- 24
48 - Input Voltage VAC
- 190 ~ 550VAC
190 ~ 550VAC - Operating Temperature
- -30°C / +70°C
- Rating
- 453
- Power W
- 480
- PFC
- Yes
- Warranty
- 3 Years
- Mechanical Mounting Format
- Din Rail
- Efficiency
- 93%
- Dimensions
- 85.5x125.2x128.5mm
- Output Current mA
- 10000
20000 - Output Current A
- 10
20 - Output Connection
- At Speed
- Certifications
- Sure, but could you please provide the full text that you would like translated?
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
UL - Applications
- DIN Panel
ITE does not translate to anything in English as it appears to be an abbreviation or acronym. The translation would depend on the context it is used in.
Industrial Automation - Input Voltage VAC (Nominal)
- 220
380
480 - Product Family
- WDR
