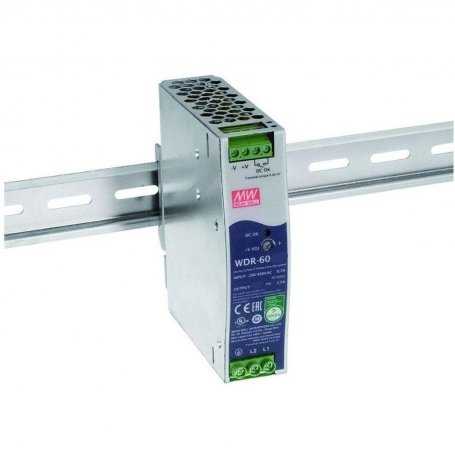

The product image may slightly differ as it is representative of the family and not the model.
WDR-60 - MeanWell - Din Rail Power Supply 60W
Description
-
Power supply Mean Well series WDR-60, power 60 Watt in the output voltages 5 12 24 48V
Mean Well Boxed Power Supply WDR-60
- MeanWell Boxed Power Supply
- Constant Voltage CV
- Input: 180 ~ 550VAC
- Power: 60W nominal
- Compact design and depth of 32mm
- Free air convection cooling
- Protections: Short circuit / Overheating / Overload / Overvoltage
- Can operate up to 2000 meters altitude
- Adjustable DC output voltage (+20%)
- Can be installed on DIN TS-35 / 7.5 or 15 rail
- High isolation voltage 4.7 KVAC
- Warranty: 3 years
Applications:
- Industrial control system
- Semiconductor manufacturing equipment
- Factory automation
- Electromechanical equipment
Main technical specifications
| MODEL | WDR-60-5 | WDR-60-12 | WDR-60-24 | WDR-60-48 |
|---|---|---|---|---|
| Output Voltage | 5V | 12V | 24V | 48V |
| Nominal Output Current | 10A | 5A | 2.5A | 1.25A |
| Power (Nominal) | 60 Watt | 60 Watt | 60 Watt | 60 Watt |
| Max Efficiency | 83.5% | 86.5% | 89% | 90.5% |
| Input Voltage VAC | ||||
| Dimensions | 32x125.2x102mm | 32x125.2x102mm | 32x125.2x102mm | 32x125.2x102mm |
See also:
Download the Din Rail power supplies catalogs in the attachments tab.
Data sheet
- Output Regulation Type
- Constant Voltage / CV
- Output Voltage VDC
- 5
12
24
48 - Input Voltage VAC
- 190~550VAC
190~550VAC - Operating Temperature
- -30°C / +85°C
- Power W
- 60
- PFC
- No
- Mechanical Mounting Format
- Din Rail
- Efficiency
- 83.5%
86.50%
89%
90.5% - Dimensions
- 32x125.2x102mm
- Output Current mA
- 1250
2500
5000
10000 - Output Current A
- 1.25
2.5
5
10 - Output Connection
- At Speed
- Certifications
- This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
UL - Applications
- DIN Panel
ITE does not translate to anything in English as it appears to be an abbreviation or acronym. The translation would depend on the context it is used in.
Industrial Automation - Input Voltage VAC (Nominal)
- 220
380
480 - Product Family
- WDR
