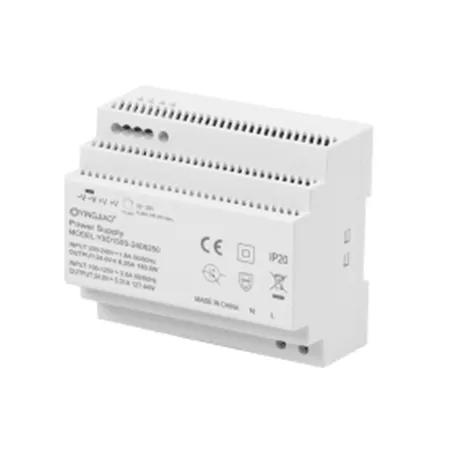

The product image may slightly differ as it is representative of the family and not the model.

Non disponibile - contattaci

YSD150S Yingjiao - DIN guide 150W Power Supply - Voltages 12V, 15V, 24V, 48V

€22.19 YSD150S-12
€22.19 YSD150S-15
€22.19 YSD150S-24
€22.19 YSD150S-48

€22.19 Tax excluded

€22.19 Tax excluded

block Non disponibile - contattaci

We will send you an email once the product becomes available. your email address will not be shared with anyone else.

Quantity Unit price Total price Buy
1 €22.19 €22.19
5 €21.75 €108.73
10 €21.30 €213.02
20 €20.86 €417.17
Description

This series of Yingjiao power supplies is designed with an ultra-thin plastic case and for a wide range of AC input from 90V AC to 264V AC. The series is class II insulation, thus achieving high efficiency and low standby power consumption. The models provide an adjustable DC output voltage and have a wide working temperature range. The excellent performance makes them perfect for automation, home and industrial control systems, etc.

Main features of 150W DIN rail power supply:

  • Universal AC input range
  • Class II isolation
  • Class 2/ Pass LPS
  • Overvoltage category III
  • Adjustable DC output voltage
  • Installation on DIN rail TS-35/7.5 or 15
  • 100% full load burn-in test
  • 3-year warranty

Applications Yingjiao YSD150S:

  • Home automation
  • Building automation
  • Power supply for cameras
  • Industrial automation
  • Electromechanical automation
  • Control panels for elevators

Our rating:

  • Reliability
  • Price
  • Features
  • ⚡⚡⚡⚡
  • ⚡⚡⚡⚡⚡
  • ⚡⚡⚡

Main technical specifications

MODEL YSD150S-12 YSD150S-15 YSD150S-24 YSD150S-48
Output voltage  12V 15V 24V 48V
Rated output current 11.3A 10.2A 9.5A 8.55A 6.25A 5.31A 3.2A 2.72A
Power (Rated) 135.6W/230VAC 122.4W/115VAC 142.5W/230VAC 128.3W/115VAC 150W/230VAC   127.4W/115VAC   153.6W/230VAC 130.6W/115VAC
Dimmable NO
Max efficiency 89% 89.5% 90.5% 90.5%
Input voltage VAC 90-264VAC
PFC NO
Dimensions 105x70.2x58.4 mm


Also see:

Download the Din Rail power supply catalogs in the attached tab.

Data sheet
Yingjiao
YSD150S-12
New
Output Regulation Type
Constant Voltage / CV
Output Voltage VDC
12
15
24
48
Input Voltage VAC
90 ~ 264VAC
90~264VAC
Operating Temperature
-4°F / +158°F
Rating
453
Power W
150
PFC
No
Warranty
3 Years
Mechanical Mounting Format
Din Rail
Efficiency
89%
89.5%
90.5%
Dimensions
18x90x58mm
Output Current mA
2710
3200
5300
6250
8500
9500
10300
11300
Output Current A
2.71
3.2
5.3
6.25
8.5
9.5
10.3
11.3
Input Connector
At Speed
Output Connection
At Speed
Isolation Class
Class 2
Certifications
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
UL
Applications
DIN Panel
ITE does not translate to anything in English as it appears to be an abbreviation or acronym. The translation would depend on the context it is used in.
Industrial Automation
Input Voltage VAC (Nominal)
110
220
