YSD15S Yingjiao - DIN rail power supply 15W - 5V, 12V, 15V, 24V, 48V
zoom_out_map
chevron_left chevron_right

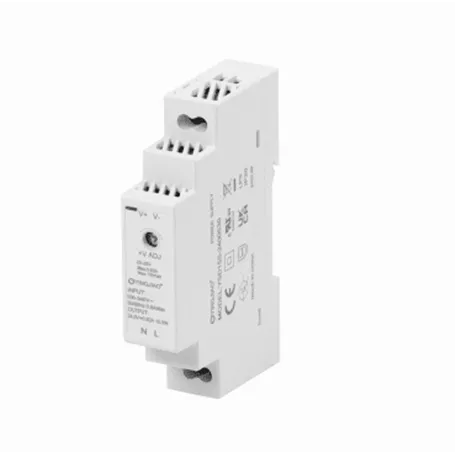

The product image may slightly differ as it is representative of the family and not the model.

YSD15S Yingjiao - DIN rail power supply 15W - Voltages 5V, 12V, 15V, 24V, 48V

€7.77 YSD15S-0502400
€7.77 YSD15S-1201250
€7.77 YSD15S-1501000
€7.77 YSD15S-2400630
€7.77 YSD15S-4800310

€7.35 Tax excluded

€7.35 Tax excluded

error_outline Product available with different options

We will send you an email once the product becomes available. your email address will not be shared with anyone else.

Quantity Unit price Total price Buy
1 €7.77 €7.77
5 €7.61 €38.07
10 €7.46 €74.59
20 €7.30 €146.08
Description

This series of Yingjiao power supplies is designed with an ultra-thin plastic case and for a wide range of AC input from 90V AC to 264V AC. The series is of class II insulation, thus achieving high efficiency and low power consumption at idle. The models provide an adjustable DC output voltage and have a wide range of working temperatures. The excellent performance makes them perfect for automation, domestic and industrial control systems, etc.

Main Features of 15W DIN Rail Power Supply:

  • Universal AC input range
  • Class II insulation
  • Class 2/ Pass LPS
  • Overvoltage category III
  • Adjustable DC output voltage
  • Installation on DIN TS-35/7.5 or 15 rail
  • 100% full load burn-in test
  • 3-year warranty

Applications Yingjiao YSD15S:

  • Home automation
  • Building automation
  • Power supply for cameras
  • Industrial automation
  • Electromechanical automation
  • Control panels for elevators

Our rating:

  • Reliability
  • Price
  • Features
  • ⚡⚡⚡⚡
  • ⚡⚡⚡⚡⚡
  • ⚡⚡⚡

Main technical specifications

MODEL YSD15S-0502400 YSD15S-1201250 YSD15S-1501000 YSD15S-2400630 YSD15S-4800310
Output Voltage  5V 12V  15V 24V 48V
Nominal Output Current  2.4A 1.25A 1A 0.63A 0.31A
Power (Nominal) 15 Watt
Dimmable NO
Max Efficiency  80% 85% 85.5% 86% 87%
Input Voltage VAC 90-264VAC
PFC NO
Dimensions 18 x 90 x 58 mm


See also:

Download the Din Rail power supplies catalogs on the attachments tab.

Data sheet
Yingjiao
YSD15S-0502400
New
0 Items
Output Regulation Type
Constant Voltage / CV
Output Voltage VDC
5
12
15
24
48
Input Voltage VAC
90 ~ 264VAC
90~264VAC
Operating Temperature
-4°F / +158°F
Rating
453
Power W
15
PFC
No
Warranty
3 Years
Mechanical Mounting Format
Din Rail
Efficiency
80%
85%
85.5%
86.0%
87%
Dimensions
18x90x58mm
Output Current mA
310
630
1000
1250
2400
Output Current A
0.31
0.63
1
1.25
2.4
Input Connector
At Speed
Output Connection
At Speed
Isolation Class
Class 2
Certifications
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
UL
Applications
DIN Panel
ITE does not translate to anything in English as it appears to be an abbreviation or acronym. The translation would depend on the context it is used in.
Industrial Automation
Input Voltage VAC (Nominal)
110
220
