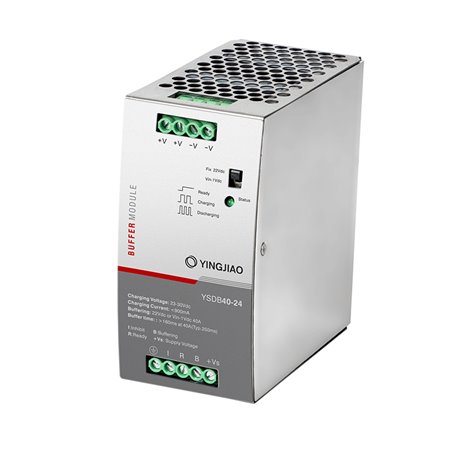

YSDB40 Yingjiao Modulo buffer guida Din 40A 24V
zoom_out_map
chevron_left chevron_right

The product image may slightly differ as it is representative of the family and not the model.

Non disponibile - contattaci

YSDB40 Yingjiao Din guide buffer module 40A 24V

We will send you an email once the product becomes available. your email address will not be shared with anyone else.

Quantity Unit price Total price Buy
1 €0.00 €0.00
5 €0.00 €0.00
10 €0.00 €0.00
20 €0.00 €0.00
Description

Yinjiao DIN YSDB40-24 Buffer Module Guide

Features

  • Use of electrolytic capacitors instead of lead batteries for buffering.
  • Buffering time of 250 ms at 22Vdc/40A type.
  • Buffering mode selectable via switch:
    1. Fixed mode at 22Vdc.
    2. Dynamic mode for Vin-1Vdc.
  • LED indicator for signal status.
  • Supports parallel connection to extend buffering time.
  • Cooling through air convection.

The Yingjiao buffering module is an additional device for regulated 24V DC power supply. This buffering module uses maintenance-free electrolytic capacitors to store energy, thus eliminating the need for periodic replacements, unlike more expensive batteries that also have a shorter operating life.

Our rating:

  • Reliability
  • Price
  • Features
    • ⚡⚡⚡⚡
    • ⚡⚡⚡⚡⚡
    • ⚡⚡⚡

Main Technical Specifications

MODEL YSDB40-24
Working DC Voltage 24V
Rated Output Current 40A
Working Temperature -25 ~ +80℃
Dimensions 63x125x110mm
Certification FCC, CE, UKCA
For purchases and samples CONTACT US

See also:

Download the Din Guide power supply catalogs in the attachments tab.


Data sheet
Yingjiao
YSDB40
New
Output Voltage VDC
24
Operating Temperature
-4°F / +158°F
Rating
453
Warranty
3 Years
Mechanical Mounting Format
Din Rail
Dimensions
63x125x115mm
Output Current mA
40000
Output Current A
40
Output Connection
At Speed
Certifications
FCC
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
UKCA
Applications
DIN Panel
ITE does not translate to anything in English as it appears to be an abbreviation or acronym. The translation would depend on the context it is used in.
Industrial Automation
Input Voltage VAC (Nominal)
110
220
