The product image may slightly differ as it is representative of the family and not the model.

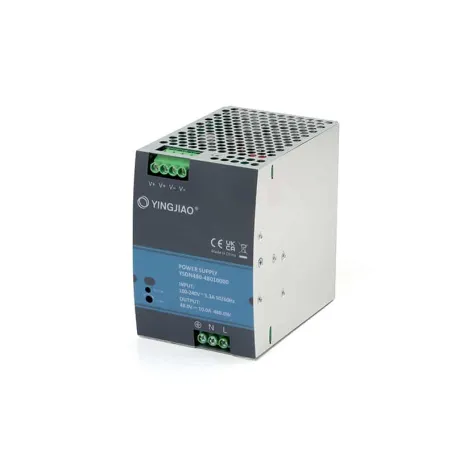

YSDN480 Yingjiao Din guide Power supply 480W Voltages 24V. 48V
Description
Yinjiao DIN rail power supply YSDN480
Features
- Rated Power: 480W
- Input: 90-264V AC, 47-63Hz
- Adjustable DC Output Voltage
- Built-in Active PFC Function
- Can be installed on DIN rail TS-35/7.5 or 15
- Protection: Short Circuit, OCP, OVP (Overvoltage)
- Output: 24-48V
Applications:
- Industrial control system
- Semiconductor manufacturing equipment
- Factory automation
- Electromechanical devices
Our rating:
- Reliability
- Price
- Features
- ⚡⚡⚡⚡
- ⚡⚡⚡⚡⚡
- ⚡⚡⚡
Main technical specifications
| MODEL | YSDN480-24020000 | YSDN480-48010000 |
|---|---|---|
| DC output voltage | 24V | 48V |
| Nominal output current | 20A | 10A |
| Rated output power | 480W | 480W |
| Working temperature | -20 ~ +70℃ | |
| Input voltage | 90-264VAC | |
| AC input current | 4.8A/115VAC 2.4A/230VAC | |
| Efficiency | 92% | 92% |
| PFC | YES | |
| Dimensions | 85.5x125x1295mm | |
| Certification | CE, CB, UL | |
| For purchases and samples | CONTACT US | |
See also:
Download the Din Rail power supply catalogs in the attachments tab.
Data sheet
- Output Regulation Type
- Constant Voltage / CV
- Output Voltage VDC
- 24
48 - Input Voltage VAC
- 90 ~ 264VAC
90 ~ 264VAC
90~264VAC - Operating Temperature
- -4°F / +158°F
- Rating
- 453
- Power W
- 480
- PFC
- Yes
- Warranty
- 3 Years
- Mechanical Mounting Format
- Din Rail
- Efficiency
- 92.0%
- Dimensions
- 85.5x125x129mm
- Output Current mA
- 10000
20000 - Output Current A
- 10
20 - Output Connection
- At Speed
- Certifications
- Sure, but could you please provide the full text that you would like translated?
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
UL - Applications
- DIN Panel
ITE does not translate to anything in English as it appears to be an abbreviation or acronym. The translation would depend on the context it is used in.
Industrial Automation - Input Voltage VAC (Nominal)
- 110
220 - Product Family
- It appears that "YSDN" is not a recognizable word or phrase in Italian. It could be an acronym, abbreviation, or a typographical error. If you provide more context or clarify the text, I would be happy to help translate it.
