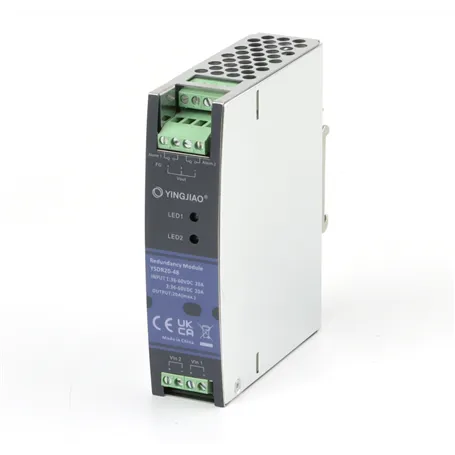

YSDR20 Yingjiao Modulo di ridondanza guida Din 20A Tensioni 12V. 24V. 48V
zoom_out_map
chevron_left chevron_right

The product image may slightly differ as it is representative of the family and not the model.

Non disponibile - contattaci

YSDR20 Yingjiao Din guide redundancy module 20A Voltages 12V. 24V. 48V

€20.30 YSDR20-12
€20.30 YSDR20-24
€20.30 YSDR20-48

We will send you an email once the product becomes available. your email address will not be shared with anyone else.

Quantity Unit price Total price Buy
1 €20.30 €20.30
5 €19.89 €99.47
10 €19.49 €194.88
20 €19.08 €381.64
Description

Yinjiao Redundancy Module Guide DIN YSDR20-12, YSDR20-24, YSDR20-48

Features

  • Supports 1+1 and N+1 redundancy system.
  • Has 2 input channels and 1 output channel.
  • Suitable for redundancy operation in 12V/24V/48V systems.
  • The output current can reach up to 20A.
  • Cooling by air convection.
  • Has 2 built-in channels for the DC OK signal and alarm relay contacts.
  • Installs on a DIN TS35/7.5 or 15 rail.

The YSDR20 redundancy module from Yingjiao is suitable for the redundancy operation of 12V/24V/48V systems. This series offers a higher peak current and is equipped with 2 built-in channels for the DC OK signal and alarm relay contacts. It can be used with a power supply to improve the overall reliability of the system.

Our rating:

  • Reliability
  • Price
  • Features
    • ⚡⚡⚡⚡
    • ⚡⚡⚡⚡⚡
    • ⚡⚡⚡

Main technical specifications

MODEL YSDR20-12 YSDR20-24  YSDR20-48
DC input voltage 12V 24V 48V
Nominal output current 0-20A
Working temperature -40 ~ +80℃
Efficiency  95%
Dimensions 32x100x125mm
Certification FCC, CE, UKCA
For purchases and samples CONTACT US

See also:

Download the Din Rail power supplies catalogs in the attachments tab.


Data sheet
Yingjiao
YSDR20-12
New
7438645979567
Output Voltage VDC
12
24
48
Input Voltage VDC (Range)
9-14VDC, 19-29VDC, 36-60VDC
Operating Temperature
-40°C / +80°C
Rating
453
Warranty
3 Years
Mechanical Mounting Format
Din Rail
Efficiency
95%
Dimensions
32x100x125mm
Output Current mA
20000
Output Current A
20
Output Connection
At Speed
Certifications
FCC
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
UKCA
Applications
DIN Panel
ITE does not translate to anything in English as it appears to be an abbreviation or acronym. The translation would depend on the context it is used in.
Industrial Automation
Input Voltage VAC (Nominal)
110
220
